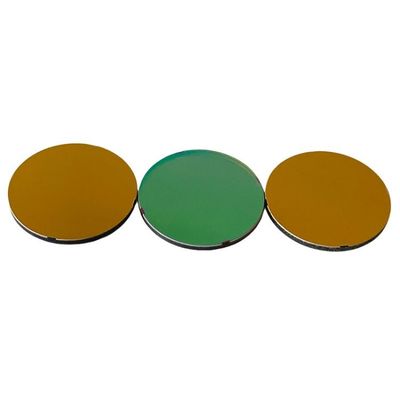

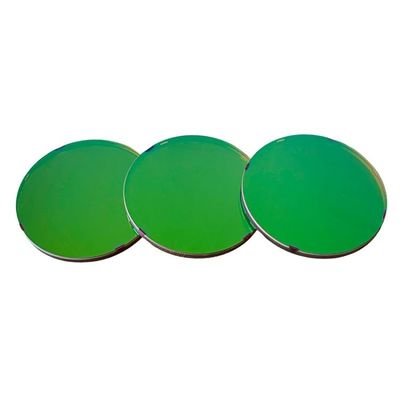

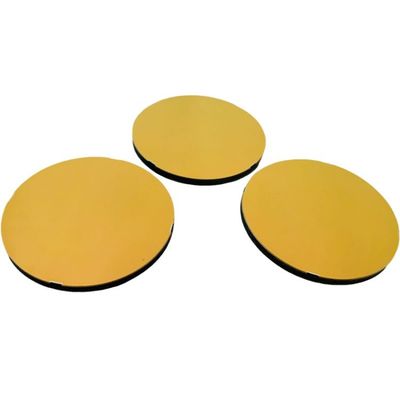

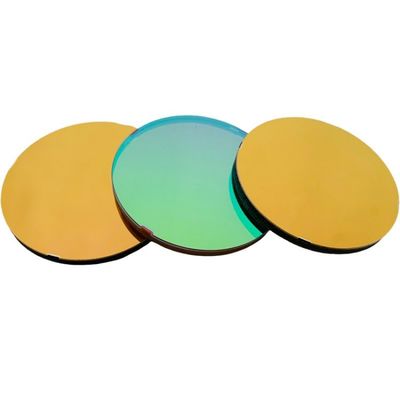

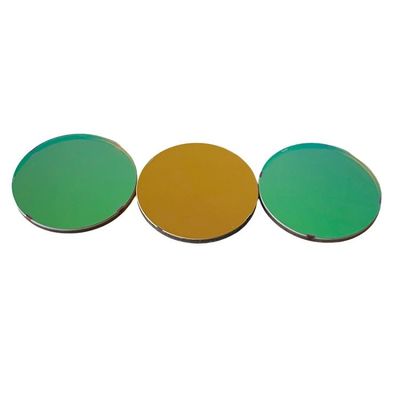

1570nm Kingki Single Op Amp Bandpass Filter Small Ripple

  • 1570nm Kingki Single Op Amp Bandpass Filter Small Ripple
  • 1570nm Kingki Single Op Amp Bandpass Filter Small Ripple
  • 1570nm Kingki Single Op Amp Bandpass Filter Small Ripple
  • 1570nm Kingki Single Op Amp Bandpass Filter Small Ripple
  • 1570nm Kingki Single Op Amp Bandpass Filter Small Ripple
  • 1570nm Kingki Single Op Amp Bandpass Filter Small Ripple
  • 1570nm Kingki Single Op Amp Bandpass Filter Small Ripple
Place of Origin Beijing, China
Model Number BP1570
Minimum Order Quantity 1piece
Price $100/piece 1-10pieces; $60/piece 11-50pieces; $25/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 1000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Kingki Product Name 1570 Bandpass Filter
Substrate Clear Optical Glass Center Wavelength 1570nm
Peak Transmittance >85% FWHM 15nm
Blocking OD5@200-1100nm Size 47*3mm
Use Optical Communication Filter Advantage Small Ripple
Customized Support OEM
High Light

1570nm Single Op Amp Bandpass Filter

,

Single Op Amp Bandpass Filter Small Ripple

,

Kingki low bandpass filter
You can tick the products you need and communicate with us in the message board.
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
1570nm 15nm >85% 200-1700nm 5 47*3mm Custom
Leave a Message
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
Product Description

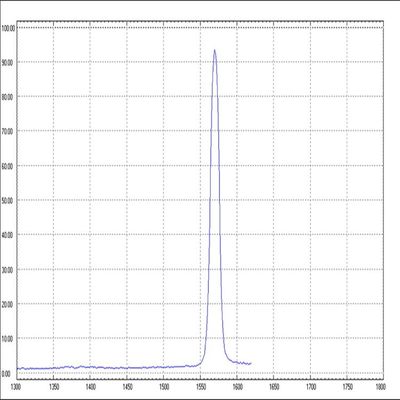

High Performence Low Insertion Loss Small Ripple 1570 IR Bandpass Filter



BP1570 optical communication infrared bandpassfilter,mainly used in laser fiber communication WDM system.

Optical communication filter(filter),which is an upstream key material technology,whether it is a light active component such as an optical transceiver module(Transceiver) or a light passive component such as a WDM module,a WDM component,an optical amplifier product,etc..

The optical communication infrared bandpass filter provided by Kingki has low insertion loss, small ripple, high transparency,high reverse,low polarization dependent loss (PDL),low temperature dependent wavelength shift, dielectric hard film and excellent environmental stability.

ir Interference bandpass filters
分类types 应用 Application 中心波长(nm)
Center Wavelength		 半宽(nm) Band Width 峰值透射率(%)
Peak Transmittance		 光学密度 OD optical density Type
Optical comunication BP filter Optical comunication ir
BP 1064		 1064 10 90 5 KK- BP1064- 10
Optical comunication ir
BP 1064		 1064 15 90 5 KK- BP1064- 15
Optical comunication ir
BP 1064		 1064 24 90 5 KK- BP1064- 24
Optical comunication ir
BP 1064		 1550 10 85 5 KK- BP1550- 10
Optical comunication ir
BP 1064		 1550 20 85 5 KK- BP1550- 20
Optical comunication ir
BP 1064		 1570 13 85 5 KK- BP1570
Analysis instrument
BP filter		 Automobile exhaust BP3400 3400 100 70 4 KK- BP3400
Analysis instrument CO2 4200 120 70 4 KK- BP4200
Analysis instrument CO 4690 122 71 4 KK- BP4690
Analysis instrument NO 5355 218 72 4 KK- BP5355
Analysis instrument H2O2 2556 99 73 4 KK- BP2556
Analysis instrument NH3 3000 95 74 4 KK- BP3000
Analysis instrument CH4 3408 91 75 4 KK- BP3408
Analysis instrument S02 3990 80 76 4 KK- BP3990
Analysis instrument CHL 3670 103 77 4 KK- BP3670
Analysis instrument 794.7 794.7 11 85 5 KK- BP794.7
laser BP filter laser BP 780 780 11 85 5 KK-BP780
laser BP 830 830 12 85 5 KK-BP830
laser BP 850 850 12 85 5 KK-BP850
laser BP 880 880 12 85 5 KK-BP880
laser BP 905 905 12 85 5 KK-BP905
laser BP 940 940 13 85 5 KK-BP940
laser BP 1.06 1060 10 85 5 KK-BP1060
laser BP 1.06 1064 10 85 5 KK-BP1064
laser BP 1152 1152 11 85 5 KK-BP1152
laser BP1310 1310 12 85 5 KK-BP1310
laser BP1523 1523 10 85 5 KK-BP1523
Food inspection BP filter beer inspectionir BP 2139 2139 15 70 5 KK- BP2139
beer inspectionir BP 2180 2180 15 70 5 KK- BP2180
Food inspectionir BP 2190 2190 15 70 5 KK- BP2190
Food inspectionir BP 2208 2208 15 70 5 KK- BP2208
Food inspectionir BP 2310 2310 15 70 5 KK- BP2310
Ice/snow BP filter Ice/snow ir BP 1300 1300 45 70 5 KK- BP1300
Ice/snow ir BP 1420 1420 45 85 5 KK- BP1420
Ice/snow ir BP 1600 1600 45 85 5 KK- BP1600
