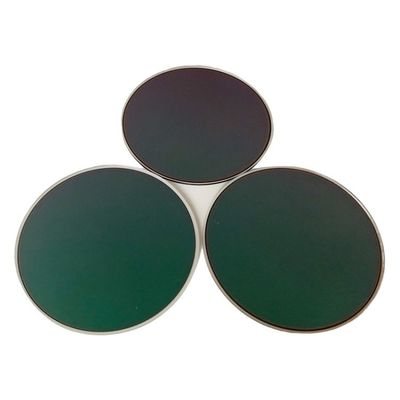

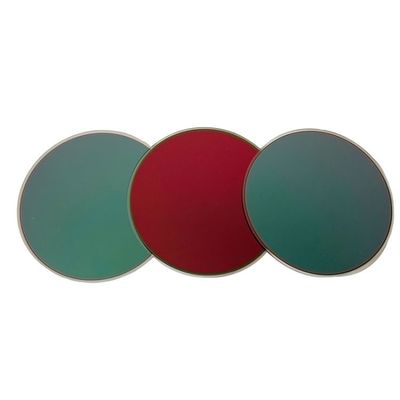

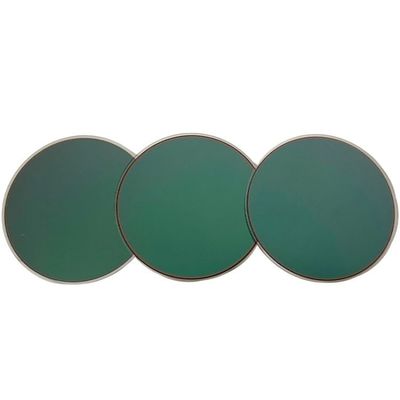

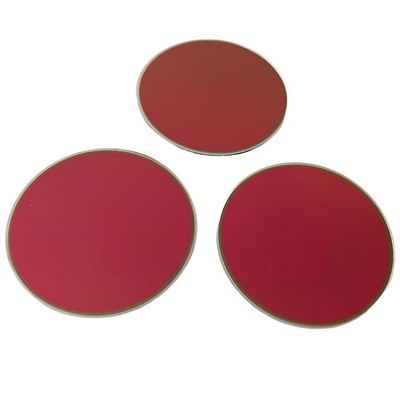

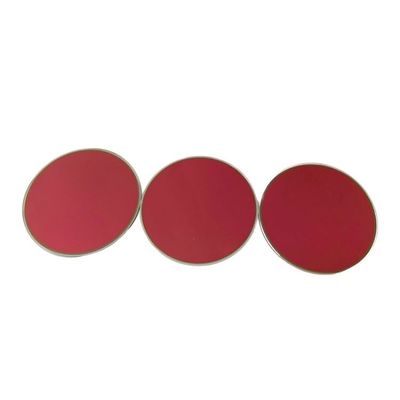

2420nm Long Pass Optical Filter 37.5mm Diameter 85% Transmittance

  • 2420nm Long Pass Optical Filter 37.5mm Diameter 85% Transmittance
  • 2420nm Long Pass Optical Filter 37.5mm Diameter 85% Transmittance
  • 2420nm Long Pass Optical Filter 37.5mm Diameter 85% Transmittance
  • 2420nm Long Pass Optical Filter 37.5mm Diameter 85% Transmittance
  • 2420nm Long Pass Optical Filter 37.5mm Diameter 85% Transmittance
  • 2420nm Long Pass Optical Filter 37.5mm Diameter 85% Transmittance
  • 2420nm Long Pass Optical Filter 37.5mm Diameter 85% Transmittance
Brand Name Kingki
Model Number 2420nm long pass
Minimum Order Quantity 1piece
Price $55/piece 1-10pieces; $30/piece 11-50pieces; $20/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 1000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Beijing, China Product Name 2420nm Long Wave Pass Filter
Brand Name Kingki Substrate Clear Optical Glass
Center Wavelength 2420nm Transmission Region 2580-5300nm
Transmittance 85% Cutoff Wavelength 200-2330nm
Diameter 37.5mm Thickness 0.6mm
Customized Support OEM
High Light

2420nm Long Pass Optical Filter

,

Long Pass Optical Filter 37.5mm Diameter

,

longpass filters 85 Transmittance
You can tick the products you need and communicate with us in the message board.
Center wavelength Transmission region Tamx Cut-off Diameter Thickness Quantity
2420nm 2580-5300nm 85% 200-2330nm 37.5mm 0.6mm Custom
Leave a Message
Center wavelength Transmission region Tamx Cut-off Diameter Thickness Quantity
Product Description

High Transmittance 2420nm Long Wave Pass Filter



Long-wave pass filter is a kind of filter that effectively transmits light beams in a certain wavelength range. Long-wave pass filter cuts off light shorter than center wavelength, while short-wave pass filter is just the opposite.

Long-wave pass filter and short-wave pass filters, as important optical components, are characterized by allowing light in one wavelength band to pass through while allowing light in another wavelength band to cut off.

It is mainly applied to medical dedection instruments, beauty photon machines, multi-band criminal detection instruments, stage lighting systems, iris recognition and digital image applications.



Center wavelength Transmission region Tamx Cut-off Diameter Thickness Quantity
2420nm 2580-5300nm 85% 200-2330nm 37.5mm 0.6mm Custom



YOUR NEEDS

ir Interference bandpass filters
分类types 应用 Application 中心波长(nm)
Center Wavelength		 半宽(nm) Band Width 峰值透射率(%)
Peak Transmittance		 光学密度 OD optical density Type
Optical comunication BP filter Optical comunication ir
BP 1064		 1064 10 90 5 KK- BP1064- 10
military ir
BP 1064		 1064 15 90 5 KK- BP1064- 15
Optical comunication ir
BP 1064		 1064 24 90 5 KK- BP1064- 24
military ir
BP 1570		 1570 13 85 5 KK- BP1570
Analysis instrument
BP filter		 Automobile exhaust BP3400 3400 100 70 4 KK- BP3400
Analysis instrument CO2 4200 120 70 4 KK- BP4200
Analysis instrument CO 4690 122 71 4 KK- BP4690
Analysis instrument NO 5355 218 72 4 KK- BP5355
Analysis instrument H2O2 2556 99 73 4 KK- BP2556
Analysis instrument NH3 3000 95 74 4 KK- BP3000
Analysis instrument CH4 3408 91 75 4 KK- BP3408
Analysis instrument S02 3990 80 76 4 KK- BP3990
Analysis instrument CHL 3670 103 77 4 KK- BP3670
Analysis instrument 794.7 794.7 11 85 5 KK- BP794.7
laser BP filter laser BP 780 780 11 85 5 KK-BP780
laser BP 830 830 12 85 5 KK-BP830
laser BP 850 850 12 85 5 KK-BP850
laser BP 880 880 12 85 5 KK-BP880
laser BP 905 905 12 85 5 KK-BP905
laser BP 940 940 13 85 5 KK-BP940
laser BP 1.06 1060 10 85 5 KK-BP1060
laser BP 1.06 1064 10 85 5 KK-BP1064
laser BP 1152 1152 11 85 5 KK-BP1152
laser BP1310 1310 12 85 5 KK-BP1310
laser BP1523 1523 10 85 5 KK-BP1523
Optical communication BP filter Optical communication BP 1550 1550 10 85 5 KK- BP1550- 10
Optical communication BP 1550 1550 20 85 5 KK- BP1550- 20
Food inspection BP filter beer inspectionir BP 2139 2139 15 70 5 KK- BP2139
beer inspectionir BP 2180 2180 15 70 5 KK- BP2180
Food inspectionir BP 2190 2190 15 70 5 KK- BP2190
Food inspectionir BP 2208 2208 15 70 5 KK- BP2208
Food inspectionir BP 2310 2310 15 70 5 KK- BP2310
Ice/snow BP filter Ice/snow ir BP 1300 1300 45 70 5 KK- BP1300
Ice/snow ir BP 1420 1420 45 85 5 KK- BP1420
Ice/snow ir BP 1600 1600 45 85 5 KK- BP1600
