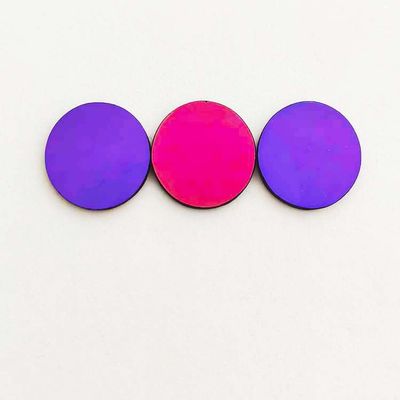

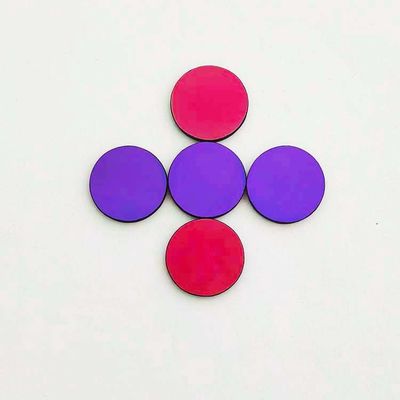

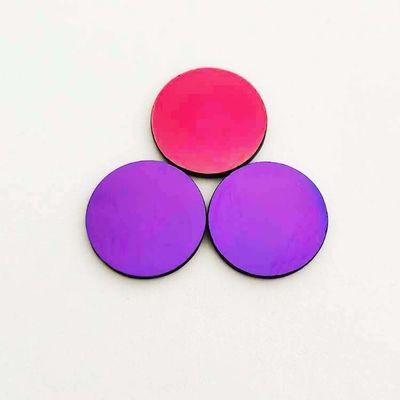

Hard Coating IR Bandpass Filter 1064nm For Laser Beam Machines
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Kingki |
| Model Number | BP1064 |
| Minimum Order Quantity | 5 pieces |
| Price | $55/piece 1-10pieces; $40/piece 11-50pieces; $20/piece >=51pieces |
| Packaging Details | Box, 100mm*80mm*60mm |
| Delivery Time | 7-28 work days |
| Payment Terms | T/T |
| Supply Ability | 1000piece/pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 1064nm Laser Beam Machines IR Bandpass Filter | Substrate | Clear Optical Glass |
|---|---|---|---|
| Center Wavelength | 1064nm | FWHM | 10nm±2nm |
| Blocking | OD>4@200-1100nm | Application | Laser Beam Machines |
| Size | D12.5mm Or Custom | ||
| High Light | IR Bandpass Filter 1064nm,IR Bandpass Filter Laser Beam,Hard Coating ir band pass filter |
||
You can tick the products you need and communicate with us in the message board.
| Center wavelength | FWHM | Tmax | Cut-off | CD | Specification | Quantity | |
|---|---|---|---|---|---|---|---|
| 1064nm | 10nm | 90 | 200-1100nm | >4 | D12.5mm | custom |
Product Description
1064nm Laser Beam Machines IR Bandpass Filter
The main function of narrow-band filters and bandpass filters is to transmit a specefic wavelength of light through an optical element, allowing the reflection (o attenuation) of other wavelengths of light. Half wavelengths are usually controlled above 4-20nm or 20-70nm and can be ultraviolet visible near infrared and far infrared wavelengths.
Our narrow band filters are made from ion-assisted deposetion of nanomaterials and high vacuum evaporation of multilayer hard films. It has the characteristics of good film density, wide cutoff range, high cut-off depth, high transmittance, hard coating, long service life, accurate wavelength positioning, low temperature drift, good penetration and high imaging clarety.
1064nm narrow bandpass filter application area:
Laser equipment, biochemical instrument, optical measuring instrument, microplate rader, biometric identification, infrared medical intrusment, fluoresecent analyzer, medical testing equipment , etc
| ir Interference bandpass filters | ||||||
| 分类types | 应用 Application | 中心波长(nm) Center Wavelength |
半宽(nm) Band Width | 峰值透射率(%) Peak Transmittance |
光学密度 OD optical density | Type |
| Optical comunication BP filter | Optical comunication ir BP 1064 |
1064 | 10 | 90 | 5 | KK- BP1064- 10 |
| Optical comunication ir BP 1064 |
1064 | 15 | 90 | 5 | KK- BP1064- 15 | |
| Optical comunication ir BP 1064 |
1064 | 24 | 90 | 5 | KK- BP1064- 24 | |
| Optical comunication ir BP 1064 |
1550 | 10 | 85 | 5 | KK- BP1550- 10 | |
| Optical comunication ir BP 1064 |
1550 | 20 | 85 | 5 | KK- BP1550- 20 | |
| Optical comunication ir BP 1064 |
1570 | 13 | 85 | 5 | KK- BP1570 | |
| Analysis instrument BP filter |
Automobile exhaust BP3400 | 3400 | 100 | 70 | 4 | KK- BP3400 |
| Analysis instrument CO2 | 4200 | 120 | 70 | 4 | KK- BP4200 | |
| Analysis instrument CO | 4690 | 122 | 71 | 4 | KK- BP4690 | |
| Analysis instrument NO | 5355 | 218 | 72 | 4 | KK- BP5355 | |
| Analysis instrument H2O2 | 2556 | 99 | 73 | 4 | KK- BP2556 | |
| Analysis instrument NH3 | 3000 | 95 | 74 | 4 | KK- BP3000 | |
| Analysis instrument CH4 | 3408 | 91 | 75 | 4 | KK- BP3408 | |
| Analysis instrument S02 | 3990 | 80 | 76 | 4 | KK- BP3990 | |
| Analysis instrument CHL | 3670 | 103 | 77 | 4 | KK- BP3670 | |
| Analysis instrument 794.7 | 794.7 | 11 | 85 | 5 | KK- BP794.7 | |
| laser BP filter | laser BP 780 | 780 | 11 | 85 | 5 | KK-BP780 |
| laser BP 830 | 830 | 12 | 85 | 5 | KK-BP830 | |
| laser BP 850 | 850 | 12 | 85 | 5 | KK-BP850 | |
| laser BP 880 | 880 | 12 | 85 | 5 | KK-BP880 | |
| laser BP 905 | 905 | 12 | 85 | 5 | KK-BP905 | |
| laser BP 940 | 940 | 13 | 85 | 5 | KK-BP940 | |
| laser BP 1.06 | 1060 | 10 | 85 | 5 | KK-BP1060 | |
| laser BP 1.06 | 1064 | 10 | 85 | 5 | KK-BP1064 | |
| laser BP 1152 | 1152 | 11 | 85 | 5 | KK-BP1152 | |
| laser BP1310 | 1310 | 12 | 85 | 5 | KK-BP1310 | |
| laser BP1523 | 1523 | 10 | 85 | 5 | KK-BP1523 | |
| Food inspection BP filter | beer inspectionir BP 2139 | 2139 | 15 | 70 | 5 | KK- BP2139 |
| beer inspectionir BP 2180 | 2180 | 15 | 70 | 5 | KK- BP2180 | |
| Food inspectionir BP 2190 | 2190 | 15 | 70 | 5 | KK- BP2190 | |
| Food inspectionir BP 2208 | 2208 | 15 | 70 | 5 | KK- BP2208 | |
| Food inspectionir BP 2310 | 2310 | 15 | 70 | 5 | KK- BP2310 | |
| Ice/snow BP filter | Ice/snow ir BP 1300 | 1300 | 45 | 70 | 5 | KK- BP1300 |
| Ice/snow ir BP 1420 | 1420 | 45 | 85 | 5 | KK- BP1420 | |
| Ice/snow ir BP 1600 | 1600 | 45 | 85 | 5 | KK- BP1600 | |
