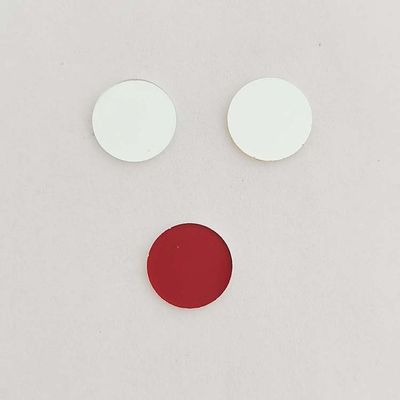

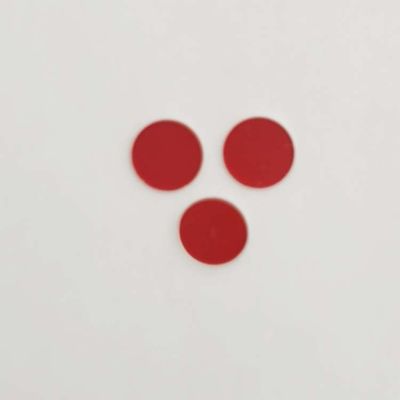

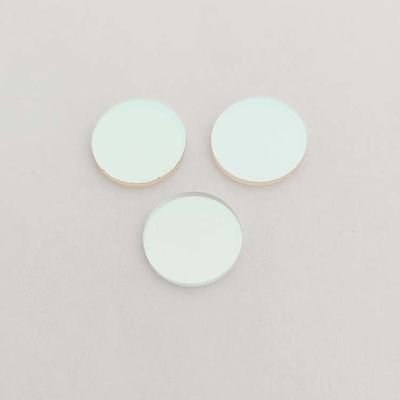

590nm Infrared Longpass Filter Optical Glass For Iris Recognition
| Brand Name | Kingki |
|---|---|
| Model Number | 590nm long wave pass |
| Minimum Order Quantity | 5piece |
| Price | $15/piece 1-10pieces; $10/piece 11-50pieces; $5/piece >=51pieces |
| Packaging Details | Box, 100mm*80mm*60mm |
| Delivery Time | 7-28 work days |
| Payment Terms | T/T |
| Supply Ability | 10000piece/pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Beijing, China | Product Name | 590nm Long Wave Pass Filter |
|---|---|---|---|
| Brand Name | Kingki | Substrate | Optical Glass |
| Center Wavelength | 590nm | Transmission Region | 610-1100nm |
| Transmittance | 90% | Cutoff Wavelength | 200-570nm |
| Diameter | 25mm Or Custom | Thickness | 1.1mm Or Custom |
| Application | Optical Beauty Instrument | Customized Support | OEM |
| High Light | 590nm Infrared Longpass Filter,Infrared Longpass Filter Optical Glass,long pass filters Iris Recognition |
||
You can tick the products you need and communicate with us in the message board.
| Center wavelength | Transmission region | Tamx | Cut-off | Diameter | Thickness | Quantity | |
|---|---|---|---|---|---|---|---|
| 590nm | 610-1100nm | 90% | 200-570nm | 25mm | 1.1mm | Custom |
Product Description
High Transmittance 590nm Long Wave Pass Filter
Long-wave pass filter is a kind of filter that effectively transmits light beams in a certain wavelength range. Long-wave pass filter cuts off light shorter than center wavelength, while short-wave pass filter is just the opposite.
Long-wave pass filter and short-wave pass filters, as important optical components, are characterized by allowing light in one wavelength band to pass through while allowing light in another wavelength band to cut off.
It is mainly applied to medical dedection instruments, beauty photon machines, multi-band criminal detection instruments, stage lighting systems, iris recognition and digital image applications.
YOUR NEEDS
| Long Wave Pass Filter | |||||||
| 分类 | 应用 | 半波长(nm) | 透射波长 | 透射率(%) | 截止波长(nm) | 透射率(%) | 型号 |
| Application | Half wavelength | Transmission wavelength | Transmitt ance | Blocking wavelength | Transmitt ance | Type | |
| Long Wave Pass Filter | IPL 420 | 420 | 440-1100 | ≥90% | 200-400 | ≤1% | IPL420 |
| IPL490 | 490 | 510-1100 | ≥90% | 200-470 | ≤1% | IPL490 | |
| IPL 560 | 560 | 580-1100 | ≥90% | 200-540 | ≤1% | IPL560 | |
| IPL 590 | 59o | 610-1100 | ≥90% | 200-590 | ≤1% | IPL590 | |
| IPL 640 | 640 | 660-1100 | ≥90% | 200-620 | ≤1% | IPL640 | |
| Analysis instrument 420 | 420 | 440-1100 | ≥90% | 200-400 | 0.01 | KK-LP420 | |
| Analysis instrument 766 | 766.5 | 806-1100 | ≥90% | 200-746 | ≤1% | KK-LP766 | |
| Analysis instrument 795 | 794.7 | 815-1100 | ≥9a% | 200-775 | ≤1% | KK-LP795 | |
| laser 730 | 730 | 750-1100 | ≥90% | 200-710 | ≤1% | KK-LP730 | |
| lase filter750 | 750 | 770-1100 | ≥90% | 200-730 | ≤1% | KK-LP750 | |
| laser filter78O | 780 | 800-1100 | ≥90% | 200-760 | ≤1% | KK-LP780 | |
| laser filter830 | 830 | 850-1100 | ≥90% | 200-810 | ≤1% | KK-LP830 | |
| laser 850 | 850 | 870-1100 | ≥90% | 200-830 | ≤1% | KK-LP850 | |
| Stage light-yellow 520 | 520 | 540-1100 | ≥90% | 200-520 | ≤1% | KK-SP520 | |
| Stage light-red 600 | 600 | 620-1100 | ≥90% | 200-580 | ≤1% | KK-SP600 | |
