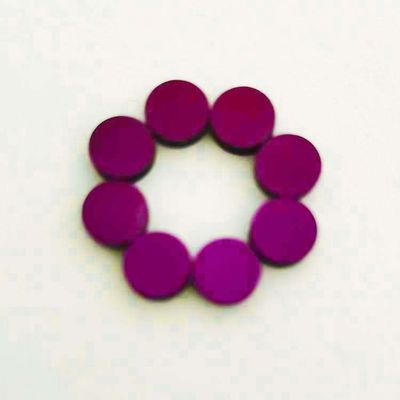

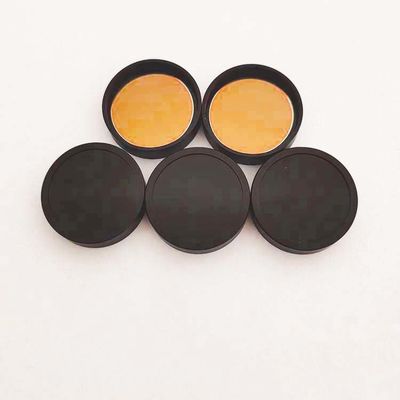

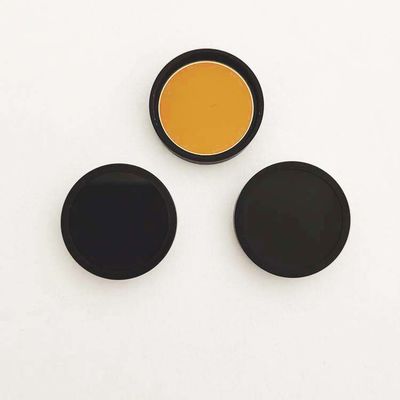

No Drift Optical Bandpass Filter 905nm Narrow Bandpass Filter for laser
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 905nm Narrow Bandpass Filter | Substrate | Optical Glass |
---|---|---|---|
Center Wavelength | 905nm | FWHM | 15± 3nm |
Transmittance | >90% | Blocking | OD5@240-1100nm |
Application | Laser | Size | 10*1.1mm Or Custom |
Advantage | No Drift | ||
High Light | No Drift Optical Bandpass Filter,Optical Bandpass Filter Laser,905nm Narrow Bandpass Filter |
Center wavelength | FWHM | Tmax | Cut-off | CD | Specification | Quantity | |
---|---|---|---|---|---|---|---|
905nm | 15mm | 90% | 240-1100nm | 5 | 10*1.1mm | custom |
905nm narrow bandpass filter main use for laser
The main function of narrow-band filters and bandpass filters is to transmit a specefic wavelength of light through an optical element, allowing the reflection (o attenuation) of other wavelengths of light. Half wavelengths are usually controlled above 4-20nm or 20-70nm and can be ultraviolet visible near infrared and far infrared wavelengths.
Our narrow band filters are made from ion-assisted deposetion of nanomaterials and high vacuum evaporation of multilayer hard films. It has the characteristics of good film density, wide cutoff range, high cut-off depth, high transmittance, hard coating, long service life, accurate wavelength positioning, low temperature drift, good penetration and high imaging clarety.
ir Interference bandpass filters | ||||||
分类types | 应用 Application | 中心波长(nm) Center Wavelength |
半宽(nm) Band Width | 峰值透射率(%) Peak Transmittance |
光学密度 OD optical density | Type |
Optical comunication BP filter | Optical comunication ir BP 1064 |
1064 | 10 | 90 | 5 | KK- BP1064- 10 |
Optical comunication ir BP 1064 |
1064 | 15 | 90 | 5 | KK- BP1064- 15 | |
Optical comunication ir BP 1064 |
1064 | 24 | 90 | 5 | KK- BP1064- 24 | |
Optical comunication ir BP 1064 |
1550 | 10 | 85 | 5 | KK- BP1550- 10 | |
Optical comunication ir BP 1064 |
1550 | 20 | 85 | 5 | KK- BP1550- 20 | |
Optical comunication ir BP 1064 |
1570 | 13 | 85 | 5 | KK- BP1570 | |
Analysis instrument BP filter |
Automobile exhaust BP3400 | 3400 | 100 | 70 | 4 | KK- BP3400 |
Analysis instrument CO2 | 4200 | 120 | 70 | 4 | KK- BP4200 | |
Analysis instrument CO | 4690 | 122 | 71 | 4 | KK- BP4690 | |
Analysis instrument NO | 5355 | 218 | 72 | 4 | KK- BP5355 | |
Analysis instrument H2O2 | 2556 | 99 | 73 | 4 | KK- BP2556 | |
Analysis instrument NH3 | 3000 | 95 | 74 | 4 | KK- BP3000 | |
Analysis instrument CH4 | 3408 | 91 | 75 | 4 | KK- BP3408 | |
Analysis instrument S02 | 3990 | 80 | 76 | 4 | KK- BP3990 | |
Analysis instrument CHL | 3670 | 103 | 77 | 4 | KK- BP3670 | |
Analysis instrument 794.7 | 794.7 | 11 | 85 | 5 | KK- BP794.7 | |
laser BP filter | laser BP 780 | 780 | 11 | 85 | 5 | KK-BP780 |
laser BP 830 | 830 | 12 | 85 | 5 | KK-BP830 | |
laser BP 850 | 850 | 12 | 85 | 5 | KK-BP850 | |
laser BP 880 | 880 | 12 | 85 | 5 | KK-BP880 | |
laser BP 905 | 905 | 12 | 85 | 5 | KK-BP905 | |
laser BP 940 | 940 | 13 | 85 | 5 | KK-BP940 | |
laser BP 1.06 | 1060 | 10 | 85 | 5 | KK-BP1060 | |
laser BP 1.06 | 1064 | 10 | 85 | 5 | KK-BP1064 | |
laser BP 1152 | 1152 | 11 | 85 | 5 | KK-BP1152 | |
laser BP1310 | 1310 | 12 | 85 | 5 | KK-BP1310 | |
laser BP1523 | 1523 | 10 | 85 | 5 | KK-BP1523 | |
Food inspection BP filter | beer inspectionir BP 2139 | 2139 | 15 | 70 | 5 | KK- BP2139 |
beer inspectionir BP 2180 | 2180 | 15 | 70 | 5 | KK- BP2180 | |
Food inspectionir BP 2190 | 2190 | 15 | 70 | 5 | KK- BP2190 | |
Food inspectionir BP 2208 | 2208 | 15 | 70 | 5 | KK- BP2208 | |
Food inspectionir BP 2310 | 2310 | 15 | 70 | 5 | KK- BP2310 | |
Ice/snow BP filter | Ice/snow ir BP 1300 | 1300 | 45 | 70 | 5 | KK- BP1300 |
Ice/snow ir BP 1420 | 1420 | 45 | 85 | 5 | KK- BP1420 | |
Ice/snow ir BP 1600 | 1600 | 45 | 85 | 5 | KK- BP1600 |
