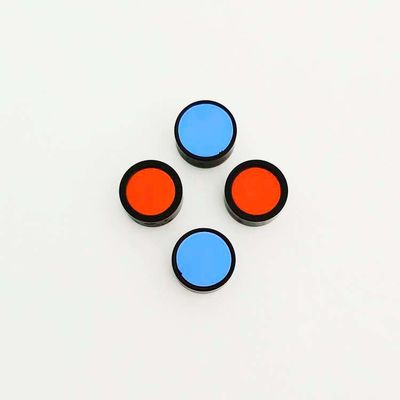

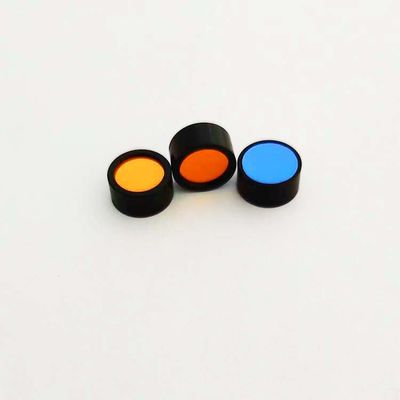

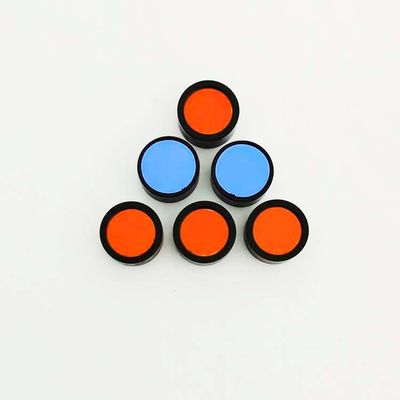

352nm UV Bandpass Filter Narrow Pass Band Filter Optical glass

  • 352nm UV Bandpass Filter Narrow Pass Band Filter Optical glass
  • 352nm UV Bandpass Filter Narrow Pass Band Filter Optical glass
  • 352nm UV Bandpass Filter Narrow Pass Band Filter Optical glass
Brand Name Kingki
Model Number BP352
Minimum Order Quantity 5piece
Price $40/piece 1-10pieces; $35/piece 11-50pieces; $30/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 1000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Beijing, China Product Name 352nm Narrow UV Bandpass Filter
Wavelength 352nm FWHM 12nm
Transmittance 35% Blocking OD5@200-1100nm
Substrate Optical Glass Surface Quality 40-60 Or Customer Design
Size 25mm*2mm Or Custom Application Laser
High Light

352nm UV Bandpass Filter

,

UV Bandpass Filter Optical Glass

,

Narrow Pass Band Filter Optical Glass
You can tick the products you need and communicate with us in the message board.
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
352nm 12nm 25% 200-1100nm OD5 25mm*2mm or custom Custom
Leave a Message
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
Product Description

High Quality 352nm UV Narrow Bandpass Filter For Laser



352nm narrow bandpass filter is UV filter.

UV filters are widely used in chemical analyzer, anti-counterfeiting, and has the characteristics of high technology content and good color concealment. Long-wave fluorescent anti-counterfeiting technology is an advanced anti-counterfeiting technology currently used in bills and currency. Short-wave anti-counterfeiting technology uses special equipment for identification, so it has stronger anti-counterfeiting and concealment performance. In order to identify the printing quality of fluorescent characters, fluorescent watermarks, fluorescent two-dimensional codes, fluorescent logos, etc., machine vision is usually used for detection, and it can also be used in medical equipment and ultraviolet fluorescent endoscopy applications.

352nm narrow bandpass filter main use for laser.





UV interference bandpass filters
Types Application Center
wavelength(nm)		 Band Width(nm) peak transmittance(%) optical density Type
Mercury lamp BP filter Mercury lamp BP253. 7 253.7 12 12 5 KK-BP254
Mercury lamp BP265.2 265.2 12 12 5 KK-BP265
Mercury lamp BP289.4 289.4 12 28 >4 KK-BP289
Mercury lamp BP296.8 296.8 12 12 5 KK-BP297
Mercury lamp BP312.6 312.6 12 15 5 KK-BP313
Mercury lamp BP334. 1 334.1 12 15 5 KK-BP334
laser BP337.1 337.1 11 35 5 KK-BP337
laser BP352 352 12 35 5 KK-BP352
laser BP365 352 12 35 5 KK-BP365
Analysis instrument
BP filter		 Analysis instrument BP214 214 12 10 5 KK-BP214
Analysis instrument BP228 228 12 20 >4 KK-BP228
Analysis instrument BP232 232 12 10 5 KK-BP232
Analysis instrument BP239 239 12 10 5 KK-BP239
Analysis instrument BP260 260 20 26 >4 KK-BP260
Analysis instrument BP280 280 12 12 5 KK-BP280
Analysis instrument BP3O7 307 12 15 5 KK-BP307
Analysis instrument BP310 310 12 27 >4 KK-BP310
Analysis instrument BP326. 1 326.1 12 15 5 KK-BP326
Analysis instrument BP34O 340 11 40 5 KK-BP340
Analysis instrument BP380 380 12 40 5 KK-BP380
Analysis instrument BP394 394 12 40 5 KK-BP394
