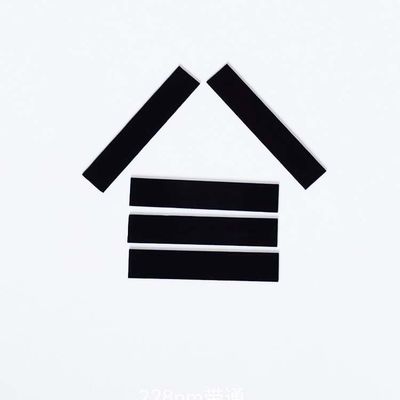

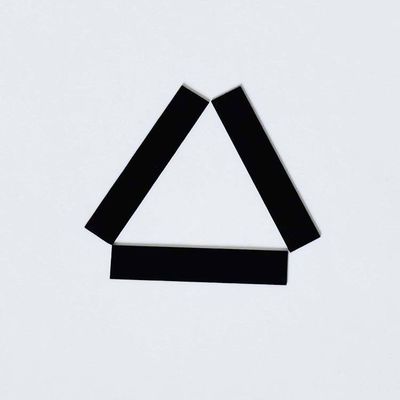

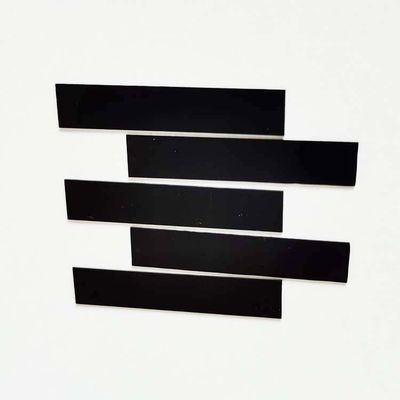

232nm optical UV Bandpass Filter 25mm*2mm For Analysis Instrument
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 232nm Narrow UV Bandpass Filter | Place Of Origin | Beijing, China |
---|---|---|---|
Wavelength | 232nm | FWHM | 12nm |
Transmittance | 10% | Blocking | OD5@200-1100nm |
Substrate | Optical Glass | Surface Quality | 40-60 Or Customer Design |
Size | 25mm*2mm Or Custom | Application | Analysis Instrument |
High Light | 232nm UV Bandpass Filter,UV Bandpass Filter Analysis Instrument,optical bandpass filter 25mm*2mm |
Center wavelength | FWHM | Tamx | Cut-off | OD | Specification | Quantity | |
---|---|---|---|---|---|---|---|
232nm | 12nm | 10% | 200-1100nm | OD5 | 25mm*2mm or custom | Custom |
High Quality 232nm UV Narrow Bandpass Filter For Analysis instrument
232nm narrow bandpass filter is UV filter.
UV filters are widely used in chemical analyzer, anti-counterfeiting, and has the characteristics of high technology content and good color concealment. Long-wave fluorescent anti-counterfeiting technology is an advanced anti-counterfeiting technology currently used in bills and currency. Short-wave anti-counterfeiting technology uses special equipment for identification, so it has stronger anti-counterfeiting and concealment performance. In order to identify the printing quality of fluorescent characters, fluorescent watermarks, fluorescent two-dimensional codes, fluorescent logos, etc., machine vision is usually used for detection, and it can also be used in medical equipment and ultraviolet fluorescent endoscopy applications.
232nm narrow bandpass filter main use for Analysis instrument.
UV interference bandpass filters | ||||||
Types | Application | Center wavelength(nm) |
Band Width(nm) | peak transmittance(%) | optical density | Type |
Mercury lamp BP filter | Mercury lamp BP253. 7 | 253.7 | 12 | 12 | 5 | KK-BP254 |
Mercury lamp BP265.2 | 265.2 | 12 | 12 | 5 | KK-BP265 | |
Mercury lamp BP289.4 | 289.4 | 12 | 28 | >4 | KK-BP289 | |
Mercury lamp BP296.8 | 296.8 | 12 | 12 | 5 | KK-BP297 | |
Mercury lamp BP312.6 | 312.6 | 12 | 15 | 5 | KK-BP313 | |
Mercury lamp BP334. 1 | 334.1 | 12 | 15 | 5 | KK-BP334 | |
laser BP337.1 | 337.1 | 11 | 35 | 5 | KK-BP337 | |
laser BP352 | 352 | 12 | 35 | 5 | KK-BP352 | |
laser BP365 | 352 | 12 | 35 | 5 | KK-BP365 | |
Analysis instrument BP filter |
Analysis instrument BP214 | 214 | 12 | 10 | 5 | KK-BP214 |
Analysis instrument BP228 | 228 | 12 | 20 | >4 | KK-BP228 | |
Analysis instrument BP232 | 232 | 12 | 10 | 5 | KK-BP232 | |
Analysis instrument BP239 | 239 | 12 | 10 | 5 | KK-BP239 | |
Analysis instrument BP260 | 260 | 20 | 26 | >4 | KK-BP260 | |
Analysis instrument BP280 | 280 | 12 | 12 | 5 | KK-BP280 | |
Analysis instrument BP3O7 | 307 | 12 | 15 | 5 | KK-BP307 | |
Analysis instrument BP310 | 310 | 12 | 27 | >4 | KK-BP310 | |
Analysis instrument BP326. 1 | 326.1 | 12 | 15 | 5 | KK-BP326 | |
Analysis instrument BP34O | 340 | 11 | 40 | 5 | KK-BP340 | |
Analysis instrument BP380 | 380 | 12 | 40 | 5 | KK-BP380 | |
Analysis instrument BP394 | 394 | 12 | 40 | 5 | KK-BP394 |
