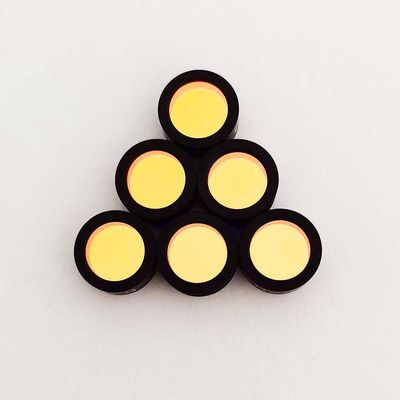

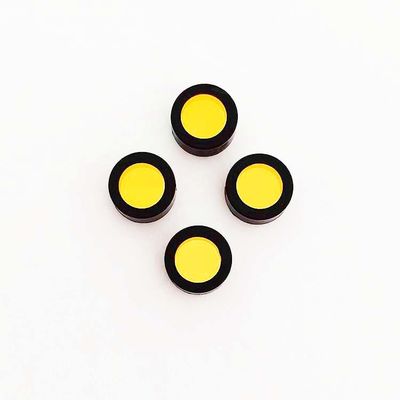

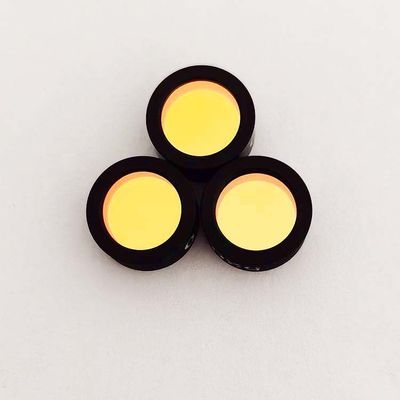

OD5200-1100nm Visible Bandpass Filter 535nm Narrow Pass Band Filter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 535nm Narrow Bandpass Filter | Substrate | Optical Glass |
---|---|---|---|
Wavelength | 535nm | FWHM | 10nm |
Peak Transmittance | 50% | Blocking | OD5@200-1100nm |
Size | 12.5*6mm Or Custom | Application | Analysis Instrument |
High Light | 1100nm Visible Bandpass Filter,Visible Bandpass Filter 535nm,535nm Narrow Pass Band Filter |
Center wavelength | FWHM | Tamx | Cut-off | OD | Specification | Quantity | |
---|---|---|---|---|---|---|---|
535nm | 10nm | 50% | 200-1100nm | 5 | 12.5*6mm | Custom |
High Quality 535nm Narrow Bandpass Filter For Analysis instrument
535nm narrow bandpass filter is the visiible light filter. Visible light filter widly use of element detection, fluorescence analysis, analysis instrument, laser, mercury lamp.
535nm narrow bandpass filter main use of analysis instrument
VIS interference bandpass filters | ||||||
Types | Application | Center Wavelength | Band Width | Peak Transmittance | optical density | Type |
Element detection BP filter |
SBP365 | 365 | 40 | 50 | 5 | KK-BP365 |
PBP530 | 530 | 8 | 70 | 5 | KK-BP530 | |
Na BP589.3 | 589.3 | 10 | 70 | 5 | KK-BP589.3 | |
KBP766 | 766 | 11 | 70 | 5 | KK-BP766 | |
Li BP670 | 670 | 10 | 70 | 5 | KK-BP670 | |
fluorescence analysis BP filter |
fluorescence analysis BP470 | 470 | 20 | 70 | 5 | KK-BP470 |
fluorescence analysis BP530 |
520 | 30 | 70 | 5 | KK-BP520 | |
Analysis instrument BP filter |
Analysis instrument BP340 | 340 | 10 | 40 | 5 | KK-BP340 |
Analysis instrument BP380 | 380 | 10 | 40 | 5 | KK-BP380 | |
Analysis instrument BP405 | 405 | 10 | 40 | 5 | KK-BP405 | |
Analysis instrument BP415 | 415 | 10 | 40 | 5 | KK-BP415 | |
Analysis instrument BP450 | 450 | 10 | 50 | 5 | KK-BP450 | |
Analysis instrument BP455.5 | 455.5 | 10 | 50 | 5 | KK-BP455.5 | |
Analysis instrument BP492 | 492 | 10 | 50 | 5 | KK-BP492 | |
Analysis instrument BP505 | 505 | 10 | 50 | 5 | KK-BP505 | |
Analysis instrument BP508.5 | 508.5 | 10 | 50 | 5 | KK-BP508.5 | |
Analysis instrument BP510 | 510 | 10 | 50 | 5 | KK-BP510 | |
Analysis instrument BP535 | 535 | 10 | 50 | 5 | KK-BP535 | |
Analysis instrument BP540 | 540 | 10 | 50 | 5 | KK-BP540 | |
Analysis instrument BP546 | 546 | 10 | 50 | 5 | KK-BP546 | |
Analysis instrument BP550 | 550 | 10 | 50 | 5 | KK-BP550 | |
Analysis instrument BP570 | 570 | 10 | 50 | 5 | KK-BP570 | |
Analysis instrument BP578 | 578 | 10 | 50 | 5 | KK-BP578 | |
Analysis instrument BP590 | 590 | 10 | 50 | 5 | KK-BP590 | |
Analysis instrument BP600 | 600 | 10 | 50 | 5 | KK-BP600 | |
Analysis instrument BP620 | 620 | 10 | 50 | 5 | KK-BP620 | |
Analysis instrument BP630 | 630 | 10 | 50 | 5 | KK-BP630 | |
Analysis instrument BP647 |
647.1 | 11 | 50 | 5 | KK-BP647.1 | |
Analysis instrument BP650 | 650 | 11 | 50 | 5 | KK-BP650 | |
Analysis instrument BP670 | 670 | 11 | 50 | 5 | KK-BP670 | |
Analysis instrument BP690 | 690 | 11 | 50 | 5 | KK-BP690 | |
laser BP filter | laser BP441.6 | 441.6 | 10 | 50 | 5 | KK-BP441.6 |
laser BP488 | 488 | 5 | 50 | 5 | KK-BP488-5 | |
laser BP488 | 488 | 10 | 50 | 5 | KK-BP488 | |
laser BP514.5 | 514.5 | 5 | 40 | 5 | KK-BP514.5-5 | |
laser BP514.5 | 514.5 | 10 | 50 | 5 | KK-BP514.5 | |
laser BP532-5 | 532 | 5 | 50 | 5 | KK-BP532-5 | |
laser BP532-10 | 532 | 10 | 50 | 5 | KK-BP532-10 | |
laser BP632.8 | 632.8 | 5 | 40 | 5 | KK-BP632.8-5 | |
laser BP632.8 | 632.8 | 11 | 50 | 5 | KK-BP632.8 | |
laser BP694.3 | 694.3 | 5 | 40 | 5 | KK-BP694.3-5 | |
laser BP694.3 | 694.3 | 11 | 50 | 5 | KK-BP694.3 | |
laser BP706.5 | 706.5 | 11 | 85 | 5 | KK-BP706 | |
laser BP730 | 730 | 11 | 85 | 5 | KK-BP730 | |
laser BP750 | 750 | 11 | 85 | 5 | KK-BP750 | |
laser BP785 | 785 | 5 | 85 | 5 | KK-BP785-5 | |
laser BP785 | 785 | 11 | 85 | 5 | KK-BP785-11 | |
Mercury lamp BP filter | Stage lightgreen BP 525 |
525 | 50 | 85 | 2 | KK-BP525 |
Mercury lamp BP 546.1 | 546.1 | 10 | 50 | 5 | KK-BP546.1 | |
Mercury lamp BP577 | 577 | 10 | 50 | 5 | KK-BP577 | |
Mercury lamp BP690 | 690.7 | 11 | 50 | 5 | KK-BP690.7 | |
Mercury lamp BP404.7 | 404.7 | 10 | 35 | 5 | KK-BP404.7 | |
Mercury lamp BP435.8 | 435.8 | 10 | 35 | 5 | KK-BP435.8 |
