Kingki Uv Short Pass Filter 250nm for hot mirrors minimize unwanted heat

  • Kingki Uv Short Pass Filter 250nm for hot mirrors minimize unwanted heat
  • Kingki Uv Short Pass Filter 250nm for hot mirrors minimize unwanted heat
  • Kingki Uv Short Pass Filter 250nm for hot mirrors minimize unwanted heat
Model Number 250nm Short-wave Pass Filter
Minimum Order Quantity 5piece
Price $40/piece 1-10pieces; $35/piece 11-50pieces; $25/piece >=51pieces
Packaging Details Box, 120mm*120mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 1000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Beijing, China Brand Name Kingki
Product Name 250nm Short-wave Pass Filter Substrate Clear Optical Glass
Half Wavelength 250nm Working Wavelength 200-245nm
Transmittance 50% Application Medical Detection Instruments
Size 40*1.1mm Customized OEM
High Light

uv short pass filter 250nm

,

uv short pass filter Hot Mirrors

,

Kingki uv shortpass filter
You can tick the products you need and communicate with us in the message board.
Center wavelength Working wavelength Tamx Cut-off Size Quantity
250nm 200-245nm 50% 200-1100nm 40*1.1mm Custom
Leave a Message
Center wavelength Working wavelength Tamx Cut-off Size Quantity
Product Description

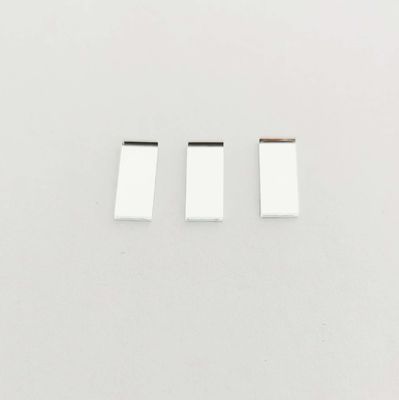

High Transmittance 250nm Short-wave Pass Filter



Shortpass Edge and Dichroic Filters are used to transmit wavelengths shorter than the cut-off wavelength of the filter. Shortpass Edge and Dichroic Filters are commonly use in life science applications including fluorescence microscopy or for integration into a variety of instrumentation. Shortpass Filters are typically designed for a 0° Angle of Incidence, whereas Shortpass Dichroic Filters are designed for use at a 45° Angle of Incidence. Shortpass Edge and Dichroic Filters can be used with Longpass Edge and Dichroic Filters to create custom bandpass filters to selectively transmit portions of the spectrum while rejecting all other wavelengths. These optical filters can also be used as hot mirrors to minimize unwanted heat caused by infrared radiation.





Short Wave Pass Filter
  Application Half Wavelength(nm) Transmission wavelength(nm) Transmitt ance blocking wavelength(nm) Transmitt ance Type
Short Wave Pass Filter Industrial camera 650 650 400-620 >50 700-110o ≤1% KK一SP650
ir-cut 650 650 400-630 ≥90% 670-1100 <1% ir-cut650
ir-cut 670 670 400-650 ≥90% 690-1100 <1% ir-cut670
ir-cut 690 690 400-66o ≥90% 710-1100 <1% ir-cut690
ir-cut 710 710 400-670 ≥90% 730-1100 <1% ir-cut710
CDimaging 620 620 400-600 ≥90% 700-1100 <5% KK-BC620
CDimaging 650 650 400-620 ≥90% 700-1100 <5% KK-BG620
Night vision 8o0 800 400-760 ≥90% 830-1100 <1% KK-SP800
infrared reflectance 780 780 400-740 ≥90% 810-1100 之1% KK-SP780
Analysis instrument 707 706.5 400-686 ≥90% 726-1100 ≤1% KK-SP706
laser 730 730 400-710 ≥90% 750-1100 ≤1% KK-SP730
laser 750 750 400-730 ≥90% 770-1100 ≤1% KK-SP750
Analysis instrument 767 766.5 400-746 ≥90% 786-1100 ≤1% KK-SP766
Analysis instrument 795 794.7 400-775 ≥90% 815-1100 ≤1% KK-SP795
laser 780 780 400-760 ≥90% 800-1100 ≤1% KK-SP780
laser 830 830 400-810 ≥90% 850-1100 ≤1% KK-SP830
