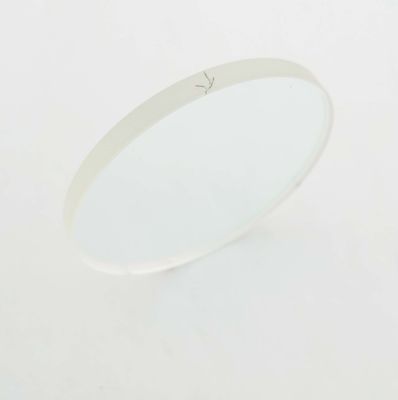

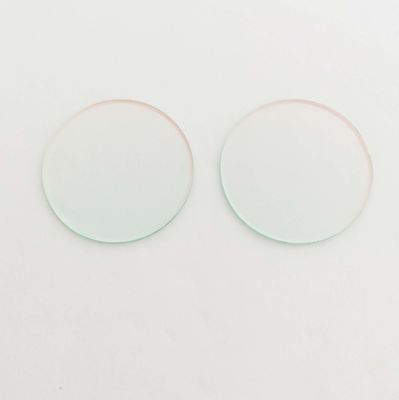

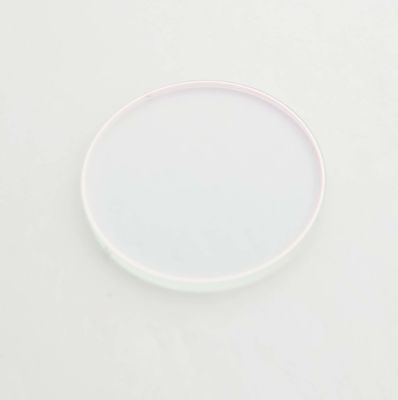

750nm Short Pass Optical Filter 90 Transmittance Optical Fiber Lighting

  • 750nm Short Pass Optical Filter 90 Transmittance Optical Fiber Lighting
  • 750nm Short Pass Optical Filter 90 Transmittance Optical Fiber Lighting
  • 750nm Short Pass Optical Filter 90 Transmittance Optical Fiber Lighting
Place of Origin Beijing, China
Brand Name Kingki
Model Number 750nm short-wave pass
Minimum Order Quantity 5piece
Price $40/piece 1-10pieces; $35/piece 11-50pieces; $25/piece >=51pieces
Packaging Details Box, 120mm*120mm*100mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 1000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Transmittance 750nm Short-wave Pass Filter Brand Name Kingki
Place Of Origin Beijing, China Substrate Clear Optical Glass
Half Wavelength 750nm Working Wavelength 400-730nm
Transmittance ≥90% Bloxking Wavelength 770-1100nm
Application Laser Advantage High Transmission
Size 88*88*1.1mm Customized OEM
High Light

750nm Short Pass Optical Filter

,

Short Pass Optical Filter 90 Transmittance

,

short pass filter Optical Lighting
You can tick the products you need and communicate with us in the message board.
Center wavelength Working wavelength Tamx Cut-off Size Quantity
750nm 400-730nm ≥90% 770-1100nm 88*88*1.1mm Custom
Leave a Message
Center wavelength Working wavelength Tamx Cut-off Size Quantity
Product Description

High Transmittance 750nm Short-wave Pass Filter

        750nm short-pass filter,  the main optical characteristics are visible band transmittance can reach more than 90%, infrared band area cut-off, according to customer needs can do infrared cut-off OD1-OD6 different requirements. . Widely used in beauty instruments, strong flashlight stage lighting color, face recognition system, optical instruments, optical fiber lighting, cold light display cabinets, police multi-band testing equipment, etc





Short Wave Pass Filter
  Application Half Wavelength(nm) Transmission wavelength(nm) Transmittance blocking wavelength(nm) Transmittance Type
Short Wave Pass Filter Industrial camera 650 650 400-620 >50 700-110o ≤1% KK一SP650
ir-cut 650 650 400-630 ≥90% 670-1100 <1% ir-cut650
ir-cut 670 670 400-650 ≥90% 690-1100 <1% ir-cut670
ir-cut 690 690 400-66o ≥90% 710-1100 <1% ir-cut690
ir-cut 710 710 400-670 ≥90% 730-1100 <1% ir-cut710
CDimaging 620 620 400-600 ≥90% 700-1100 <5% KK-BC620
CDimaging 650 650 400-620 ≥90% 700-1100 <5% KK-BG620
Night vision 8o0 800 400-760 ≥90% 830-1100 <1% KK-SP800
infrared reflectance 780 780 400-740 ≥90% 810-1100 之1% KK-SP780
Analysis instrument 707 706.5 400-686 ≥90% 726-1100 ≤1% KK-SP706
laser 730 730 400-710 ≥90% 750-1100 ≤1% KK-SP730
laser 750 750 400-730 ≥90% 770-1100 ≤1% KK-SP750
Analysis instrument 767 766.5 400-746 ≥90% 786-1100 ≤1% KK-SP766
Analysis instrument 795 794.7 400-775 ≥90% 815-1100 ≤1% KK-SP795
laser 780 780 400-760 ≥90% 800-1100 ≤1% KK-SP780
laser 830 830 400-810 ≥90% 850-1100 ≤1% KK-SP830
