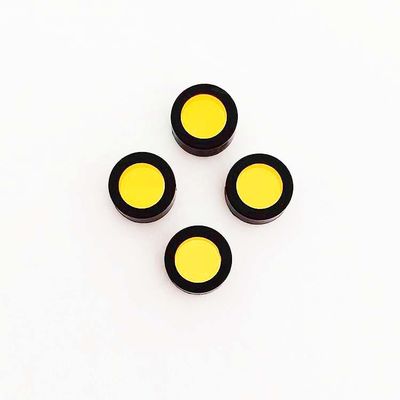

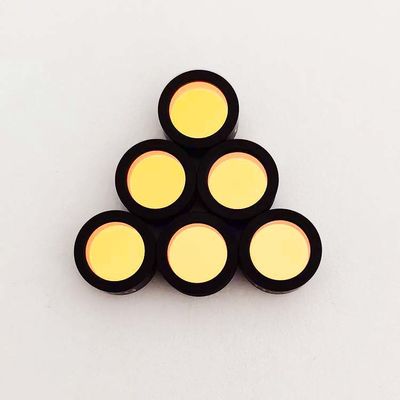

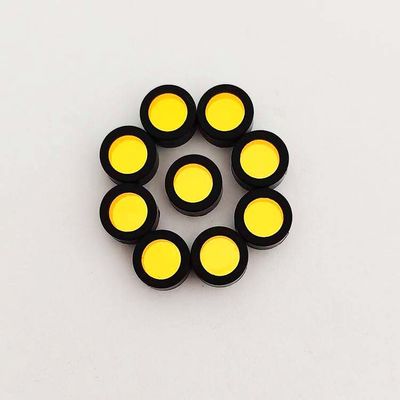

Kingki Fluorescent Light Filter Optical biochemical 12*2mm
| Model Number | 490nm fluorescence analysis filters |
|---|---|
| Minimum Order Quantity | 5piece |
| Price | $70/piece 1-10pieces; $55/piece 11-50pieces; $35/piece >=55pieces |
| Packaging Details | Box, 100mm*80mm*60mm |
| Delivery Time | 7-28 work days |
| Payment Terms | T/T |
| Supply Ability | 10000piece/pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Beijing, China | Brand Name | Kingki |
|---|---|---|---|
| Procuct Name | 490nm Fluorescence Analysis Filters | Substrate | Clear Optical Glass |
| Center Wavelength | 490nm | FWHM | 10nm |
| Peak Transmittance | >50% | Blocking | OD5@200-1100nm |
| Size | 12*2mm Or Custom | Application | Fluorescence Analysis |
| Customized | OEM | ||
| High Light | Kingki Fluorescent Light Filter,Fluorescent Light Filter Optical Biochemical,fluorescent tube filters 12*2mm |
||
You can tick the products you need and communicate with us in the message board.
| Center wavelength | FWHM | Cut-off | OD | Specification | Quantity | |
|---|---|---|---|---|---|---|
| 490nm | 10nm | 200-1100nm | 5 | 12*2mm or custom | Custom |
Product Description
Optical biochemical filter fluorescent light filter fluorescence analysis filter
Fluorescence detection bandpass filter is mainly used for fluorescence microscope and fluorescencequalitative instrument.
Fluorescent filters are widely used in biochemical analysis neighborhoods. Fluorescent filtersgenerally include two types: excitation filter and emission filter.
Excitation filter (Exciting Filter, Exciter Filter, Excitation Filter): in a fluorescence microscope, only afilter that can pass the wavelength of the fluorescence can be passed. There is also the direct use oflaser as a stimulated luminescence.
Emission filters (Emitting Filter, Emission Filter, Barrier Filter, Emitter): select and transmit thefluorescence emitted by the sample, and the other light rays cutoff. The wavelength of the emittinglight is longer than that of the stimulated luminescence. The bandpass filter or the long pass filtercan be selected as the transmitting filter.
Fluorescence detection bandpass filter is mainly used for fluorescence microscope and fluorescencequalitative instrument.
Fluorescent filters are widely used in biochemical analysis neighborhoods. Fluorescent filtersgenerally include two types: excitation filter and emission filter.
Excitation filter (Exciting Filter, Exciter Filter, Excitation Filter): in a fluorescence microscope, only afilter that can pass the wavelength of the fluorescence can be passed. There is also the direct use oflaser as a stimulated luminescence.
Emission filters (Emitting Filter, Emission Filter, Barrier Filter, Emitter): select and transmit thefluorescence emitted by the sample, and the other light rays cutoff. The wavelength of the emittinglight is longer than that of the stimulated luminescence. The bandpass filter or the long pass filtercan be selected as the transmitting filter.
YOUR NEEDS
| VIS interference bandpass filters | ||||||
| 分类 | 应用 | 中心波长(nm) | 半宽(nm) | 峰值透射率(%) | 光学密度OD | 型号 |
| Types | Application | Center Wavelength | Band Width | Peak Transmittance | optical density | Type |
| Element detection BP filter |
SBP365 | 365 | 40 | 50 | 5 | KK-BP365 |
| PBP530 | 530 | 8 | 70 | 5 | KK-BP530 | |
| Na BP589.3 | 589.3 | 10 | 70 | 5 | KK-BP589.3 | |
| KBP766 | 766 | 11 | 70 | 5 | KK-BP766 | |
| Li BP670 | 670 | 10 | 70 | 5 | KK-BP670 | |
| fluorescence analysis BP filter |
fluorescence analysis BP470 | 470 | 20 | 70 | 5 | KK-BP470 |
| fluorescence analysis BP530 |
520 | 30 | 70 | 5 | KK-BP520 | |
| Analysis instrument BP filter |
Analysis instrument BP340 | 340 | 10 | 40 | 5 | KK-BP340 |
| Analysis instrument BP380 | 380 | 10 | 40 | 5 | KK-BP380 | |
| Analysis instrument BP405 | 405 | 10 | 40 | 5 | KK-BP405 | |
| Analysis instrument BP415 | 415 | 10 | 40 | 5 | KK-BP415 | |
| Analysis instrument BP450 | 450 | 10 | 50 | 5 | KK-BP450 | |
| Analysis instrument BP455.5 | 455.5 | 10 | 50 | 5 | KK-BP455.5 | |
| Analysis instrument BP492 | 492 | 10 | 50 | 5 | KK-BP492 | |
| Analysis instrument BP505 | 505 | 10 | 50 | 5 | KK-BP505 | |
| Analysis instrument BP508.5 | 508.5 | 10 | 50 | 5 | KK-BP508.5 | |
| Analysis instrument BP510 | 510 | 10 | 50 | 5 | KK-BP510 | |
| Analysis instrument BP535 | 535 | 10 | 50 | 5 | KK-BP535 | |
| Analysis instrument BP540 | 540 | 10 | 50 | 5 | KK-BP540 | |
| Analysis instrument BP546 | 546 | 10 | 50 | 5 | KK-BP546 | |
| Analysis instrument BP550 | 550 | 10 | 50 | 5 | KK-BP550 | |
| Analysis instrument BP570 | 570 | 10 | 50 | 5 | KK-BP570 | |
| Analysis instrument BP578 | 578 | 10 | 50 | 5 | KK-BP578 | |
| Analysis instrument BP590 | 590 | 10 | 50 | 5 | KK-BP590 | |
| Analysis instrument BP600 | 600 | 10 | 50 | 5 | KK-BP600 | |
| Analysis instrument BP620 | 620 | 10 | 50 | 5 | KK-BP620 | |
| Analysis instrument BP630 | 630 | 10 | 50 | 5 | KK-BP630 | |
| Analysis instrument BP647 |
647.1 | 11 | 50 | 5 | KK-BP647.1 | |
| Analysis instrument BP650 | 650 | 11 | 50 | 5 | KK-BP650 | |
| Analysis instrument BP670 | 670 | 11 | 50 | 5 | KK-BP670 | |
| Analysis instrument BP690 | 690 | 11 | 50 | 5 | KK-BP690 | |
| laser BP filter | laser BP441.6 | 441.6 | 10 | 50 | 5 | KK-BP441.6 |
| laser BP488 | 488 | 5 | 50 | 5 | KK-BP488-5 | |
| laser BP488 | 488 | 10 | 50 | 5 | KK-BP488 | |
| laser BP514.5 | 514.5 | 5 | 40 | 5 | KK-BP514.5-5 | |
| laser BP514.5 | 514.5 | 10 | 50 | 5 | KK-BP514.5 | |
| laser BP532-5 | 532 | 5 | 50 | 5 | KK-BP532-5 | |
| laser BP532-10 | 532 | 10 | 50 | 5 | KK-BP532-10 | |
| laser BP632.8 | 632.8 | 5 | 40 | 5 | KK-BP632.8-5 | |
| laser BP632.8 | 632.8 | 11 | 50 | 5 | KK-BP632.8 | |
| laser BP694.3 | 694.3 | 5 | 40 | 5 | KK-BP694.3-5 | |
| laser BP694.3 | 694.3 | 11 | 50 | 5 | KK-BP694.3 | |
| laser BP706.5 | 706.5 | 11 | 85 | 5 | KK-BP706 | |
| laser BP730 | 730 | 11 | 85 | 5 | KK-BP730 | |
| laser BP750 | 750 | 11 | 85 | 5 | KK-BP750 | |
| laser BP785 | 785 | 5 | 85 | 5 | KK-BP785-5 | |
| laser BP785 | 785 | 11 | 85 | 5 | KK-BP785-11 | |
| Mercury lamp BP filter | Stage lightgreen BP 525 |
525 | 50 | 85 | 2 | KK-BP525 |
| Mercury lamp BP 546.1 | 546.1 | 10 | 50 | 5 | KK-BP546.1 | |
| Mercury lamp BP577 | 577 | 10 | 50 | 5 | KK-BP577 | |
| Mercury lamp BP690 | 690.7 | 11 | 50 | 5 | KK-BP690.7 | |
| Mercury lamp BP404.7 | 404.7 | 10 | 35 | 5 | KK-BP404.7 | |
| Mercury lamp BP435.8 | 435.8 | 10 | 35 | 5 | KK-BP435.8 | |
