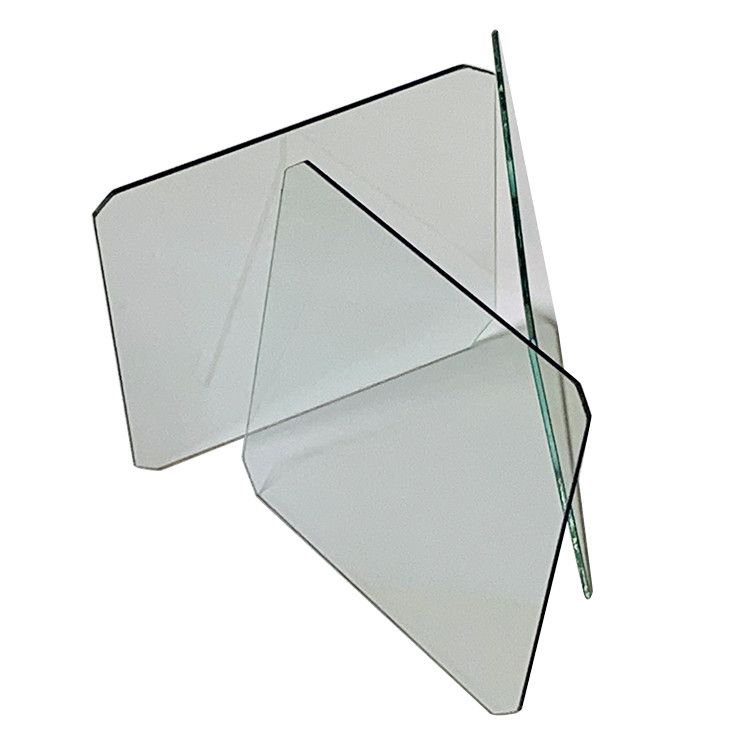

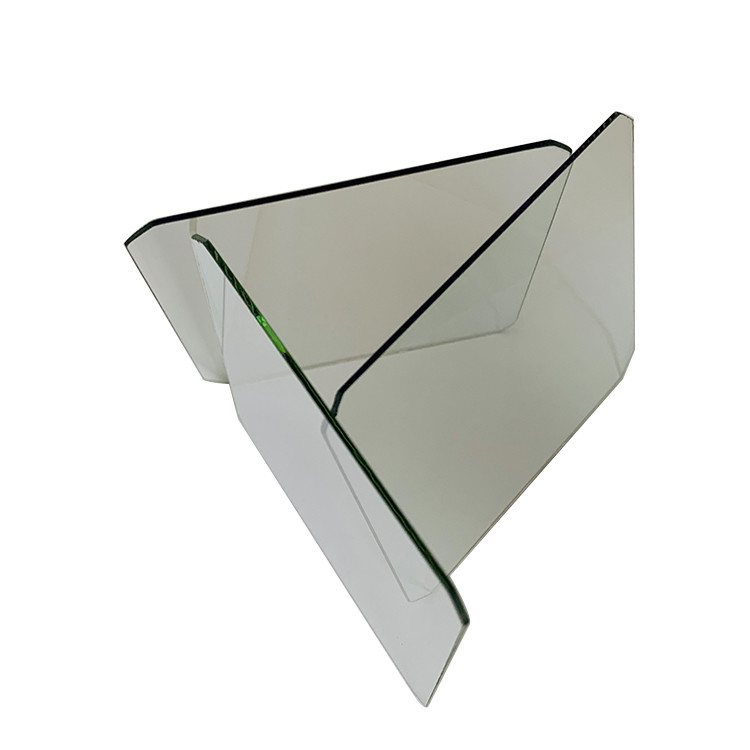

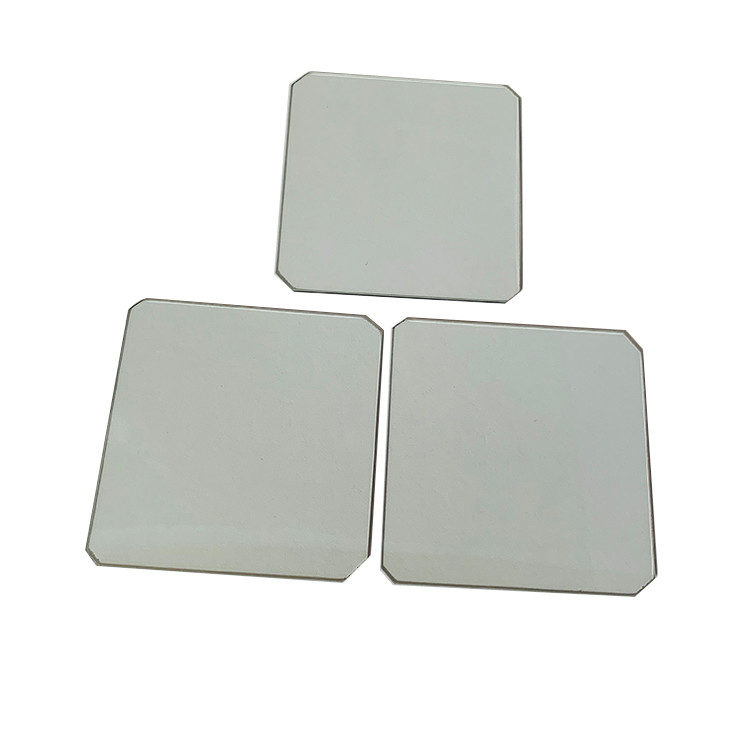

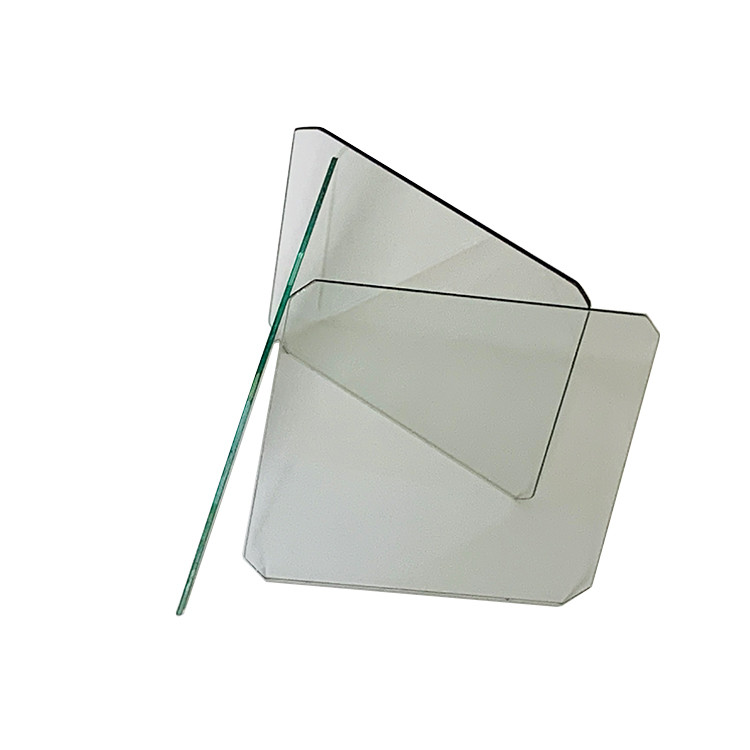

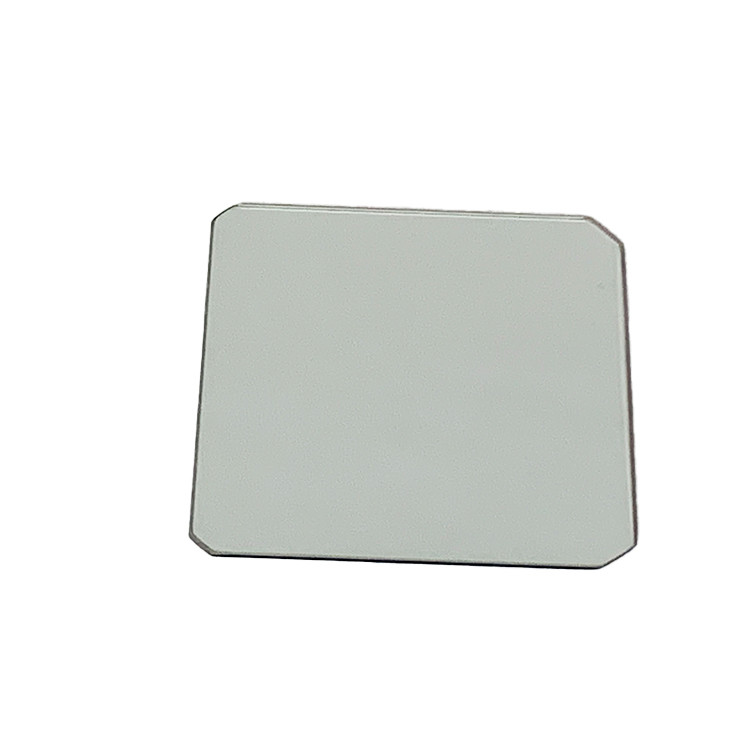

Transparent ITO Electromagnetic Shielding Glass Conductive ITO Coated Glass
| Model Number | ITO Shielding Glass |
|---|---|
| Minimum Order Quantity | 1piece |
| Price | $68/piece 1-10pieces; $38/piece 11-50pieces; $28/piece >=51pieces |
| Packaging Details | Box, 200mm*100mm*60mm |
| Delivery Time | 7-28 work days |
| Payment Terms | T/T |
| Supply Ability | 1000piece/pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Beijing, China | Brand Name | Kingki |
|---|---|---|---|
| Product Name | Electromagnetic Shielding ITO Film | Substrate | Clear Optical Glass |
| Application | Communications | Advantage | Interference Shielding |
| Size | 128.5x44x1.1mm | ||
| High Light | Transparent ITO Electromagnetic Shielding Glass,ITO Electromagnetic Shielding Glass Conductive,Conductive ITO Coated Glass |
||
You can tick the products you need and communicate with us in the message board.
| Product name | Brand Name | Application | communications | Size | Quantity | |
|---|---|---|---|---|---|---|
| Electromagnetic Shielding ITO Film | Kingki | communications | interference shielding | 128.5x44x1.1mm | Custom |
Product Description
Low Resistance Transparent Electromagnetic Shielding Conductive ITO film ITO Shielding Glass
The ITO electromagnetic shielding rransparent conductive film is a transparent conductive film formed by coating a transparent indium tin oxide(ITO) film on the surface of different substrates(glass/PET/PC.) by electron beam evaporation. The resistors achieve EMI electromagnetic interference shielding.
When the electromagnetic wave propagation path encounters the electromagnetic shielding film, it will change the transmission direction of the electromagnetic wave, effectively block the radio wave propagation, block the interference effect of the electromagnetic radiation, ensure the normal operation of the equipment, and avoid the influence of the electromagnetic radiation by the instrument and meter workers. AR glass is anti-reflective glass and AG glass is anti-glare glass.
ITO heating anti-frost transparent conductive film is widely used in military, communications,automotive electronics, medical equipment and other industries that require high transparency. Many electronic products, such as equipment windows, computer monitors, and instrumentation displays, often need to prevent the window from being blurred due to the low temperature and the fog. The best way is to use a heated anti- frost ITO transparent conductive film.
The heated anti-frost ITO transparent film produced by Jinji Aomeng Dream has long been used in the window of instruments and apparatus .
YOUR NEEDS
| ITO Transparent conductive film | ||||||
| needs | sides | R | spectral range | Rave | Tave | Tem/℃ |
| e.g.1 | A | ≤15Ω | 420-680nm | ≤1% | ≥90% | ≤100 |
| B | 420-680nm | ≤0.5% | ≥99% | ≤100 | ||
| e.g.2 | A | ≤12Ω | 420-680nm | ≤1% | ≥90% | ≤100 |
| B | no coating | |||||
| e.g.3 | A | 50±10Ω | 420-680nm | ≤10% | ≥80% | ≤300 |
| B | BBAR | 420-680nm | ≤0.5% | ≥99% | ≤300 | |
| needs | l*w*h(mm) | material | using | Gluing | Electric | Num |
| e.g.1 | 110x150x1 | D263 | Monitor | NO | Y | 100 |
| e.g.2 | 260x150x1 | B270 | Monitor | YES | N | 300 |
| e.g.3 | 110x150x1 | D263 | window | NO | Y | 200 |
| ITO Transparent conductive film | ||||||
| Description | Types | |||||
| Electromagneticallycompatible low resistance | 420-680nm,Rave≤1 %,Tave≥90%, R≤16Ω | ITO-1 | ||||
| 420-680nm,Tave≥80%, R≤10Ω | ITO-2 | |||||
| Thermal defrosting ITO | 420-680nm,Tave≥90%, R≤50Ω+10 | ITO-3 | ||||
