ITO Coating Layer Conductive Glass Slides high transparency 128.5x44x1.1mm

  • ITO Coating Layer Conductive Glass Slides high transparency 128.5x44x1.1mm
  • ITO Coating Layer Conductive Glass Slides high transparency 128.5x44x1.1mm
  • ITO Coating Layer Conductive Glass Slides high transparency 128.5x44x1.1mm
  • ITO Coating Layer Conductive Glass Slides high transparency 128.5x44x1.1mm
Model Number ITO shielding glass
Minimum Order Quantity 5piece
Price $68/piece 1-10pieces; $38/piece 11-50pieces; $28/piece >=51pieces
Packaging Details Box, 200mm*100mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 1000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Beijing, China Brand Name Kingki
Product Name ITO Shielding Glass Substrate Clear Optical Glass
Application Interference Shielding Advantage Low Resistance
Size 128.5x44x1.1mm
High Light

ITO Coating Conductive Glass Slides

,

Conductive Glass Slides High Transparency

,

ito coated slides 128.5x44x1.1mm
You can tick the products you need and communicate with us in the message board.
Product name Brand Name Application Advantage Size Quantity
ITO shielding glass Kingki interference shielding Low Resistance 128.5x44x1.1mm Custom
Leave a Message
Product name Brand Name Application Advantage Size Quantity
Product Description

Factory Sales Low Resistance Transparent ITO coating layer ITO Shielding Glass



The Low Resistance Transparent ITO coating layer ITO Shielding Glass ITO Shielding Glass is a transparent conductive film formed by coating a transparent indium tin oxide(ITO) film on the surface of different substrates(glass/PET/PC.) by electron beam evaporation. The resistors achieve EMI electromagnetic interference shielding.

When the electromagnetic wave propagation path encounters the electromagnetic shielding film, it will change the transmission direction of the electromagnetic wave, effectively block the radio wave propagation, block the interference effect of the electromagnetic radiation, ensure the normal operation of the equipment, and avoid the influence of the electromagnetic radiation by the instrument and meter workers. AR glass is anti-reflective glass and AG glass is anti-glare glass.

The Low Resistance Transparent ITO coating layer ITO Shielding Glass is widely used in military, communications,automotive electronics, medical equipment and other industries that require high transparency. Many electronic products, such as equipment windows, computer monitors, and instrumentation display.

The Low Resistance Transparent ITO coating layer ITO Shielding Glass produced by Jinji Aomeng Dream has long been used in the window of instruments and apparatus .



YOUR NEEDS

ITO Transparent conductive film

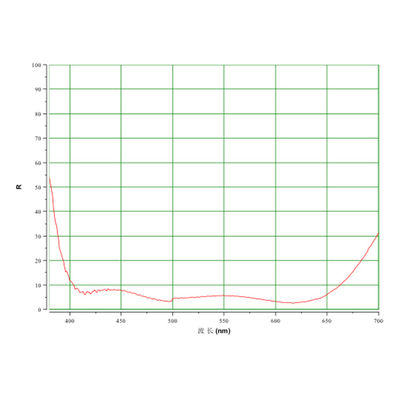

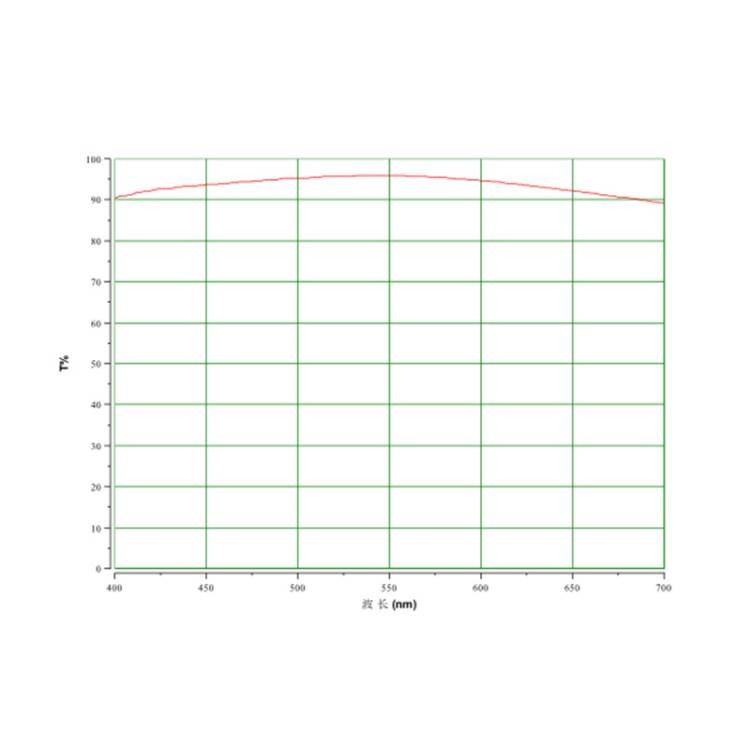

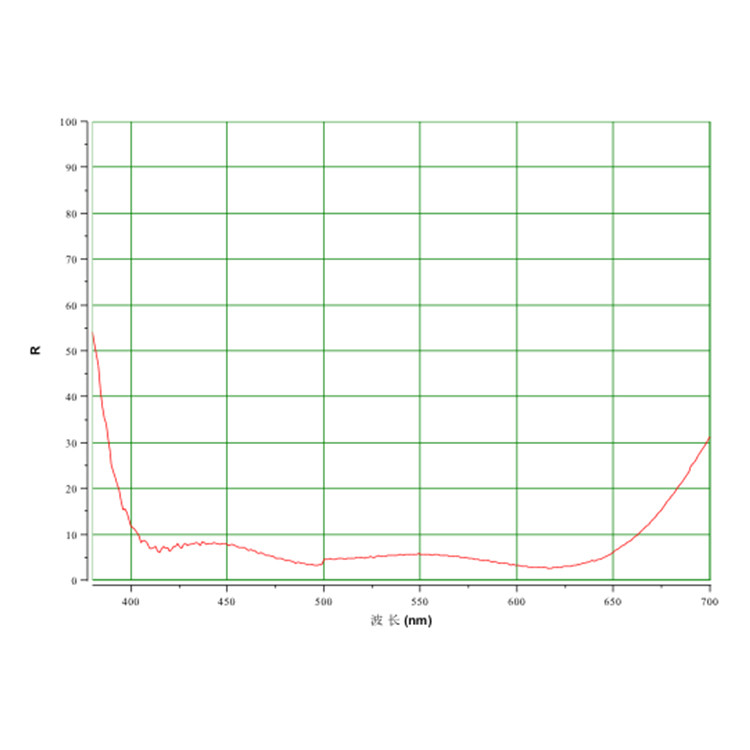

needs sides R spectral range Rave Tave Tem/℃
e.g.1 A ≤15Ω 420-680nm ≤1% ≥90% ≤100
B 420-680nm ≤0.5% ≥99% ≤100
e.g.2 A ≤12Ω 420-680nm ≤1% ≥90% ≤100
B no coating
e.g.3 A 50±10Ω 420-680nm ≤10% ≥80% ≤300
B BBAR 420-680nm ≤0.5% ≥99% ≤300

needs l*w*h(mm) material using Gluing Electric Num
e.g.1 110x150x1 D263 Monitor NO Y 100
e.g.2 260x150x1 B270 Monitor YES N 300
e.g.3 110x150x1 D263 window NO Y 200

ITO Transparent conductive film
  Description Types
Electromagneticallycompatible low resistance 420-680nm,Rave≤1 %,Tave≥90%, R≤16Ω ITO-1
420-680nm,Tave≥80%, R≤10Ω ITO-2
Thermal defrosting ITO 420-680nm,Tave≥90%, R≤50Ω+10 ITO-3
