Good Imaging Optical Beam Splitter Polarized Beam Splitter Small Stress

  • Good Imaging Optical Beam Splitter Polarized Beam Splitter Small Stress
  • Good Imaging Optical Beam Splitter Polarized Beam Splitter Small Stress
  • Good Imaging Optical Beam Splitter Polarized Beam Splitter Small Stress
  • Good Imaging Optical Beam Splitter Polarized Beam Splitter Small Stress
  • Good Imaging Optical Beam Splitter Polarized Beam Splitter Small Stress
  • Good Imaging Optical Beam Splitter Polarized Beam Splitter Small Stress
Place of Origin Beijing, China
Brand Name Kingki
Model Number Beam Splitter
Minimum Order Quantity 1piece
Price $90/piece 1-10pieces; $60/piece 11-50pieces; $30/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 1000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Extinction Ratio Good Imaging Small Stress Polarization Prism Splitting Light Brand Name Kingki
Place Of Origin Beijing, China Substrate Clear Optical Glass
Surface Quality 60/40 Dimension Tolerance 0.01
Flatness Prism Angle Tolerance 0.1
Advantge Small Beam Deflection Angle
Highlight

Good Imaging Optical Beam Splitter

,

Optical Beam Splitter Polarized

,

Polarized Beam Splitter Small Stress
You can tick the products you need and communicate with us in the message board.
Product name Surface Quality Dimension Tolerance Flatness Angle Tolerance Quantity
Polarization Prism Splitting Light 60/40 0.01 Prism 0.1 Custom
Leave a Message
Product name Surface Quality Dimension Tolerance Flatness Angle Tolerance Quantity
Product Description

High Extinction Ratio Good Imaging Small Stress Polarization Prism Splitting Light

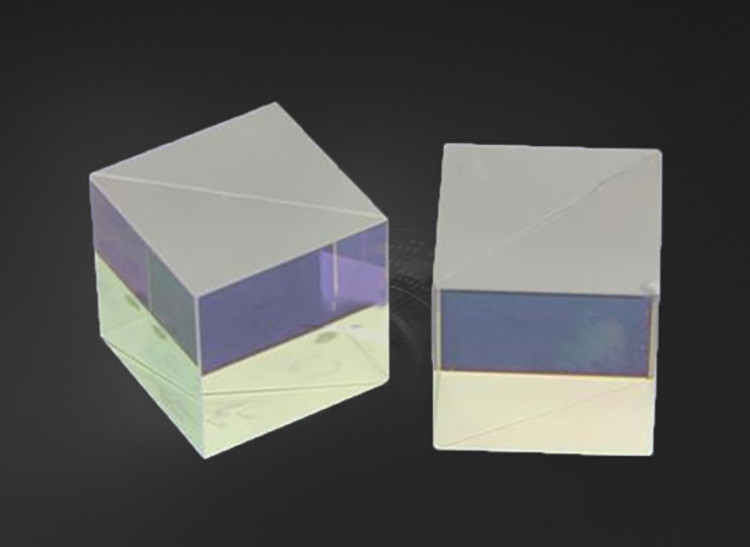

The polarizing beam splitter prism is an optical element which is formed by plating a multilayer filmstructure on the inclined surface of a right-angle prism, and then gluing to form a cubic structure.By utilizing the property that the transmittance of P polarized light is 1 and the transmittance of Spolarized light is less than 1 when light is incident at Brewster angle, after the light passes throughthe multilayer film structure for many times at Brewster angle, the obtained P polarized componentis completely transmitted, and most of the S polarized component is reflected (at least more than90%).

Polarization beam splitter prism has the characteristics of small stress, high extinction ratio, goodimaging quality and small beam deflection angle. The wavelength covers 420-1600nm. It can beused for polarization, polarization detection, light intensity adjustment and other occasions.

Product name Surface Quality Dimension Tolerance Flatness   Angle Tolerance Quantity
Polarization Prism Splitting Light 60/40 0.01 Prism   0.1 Custom
