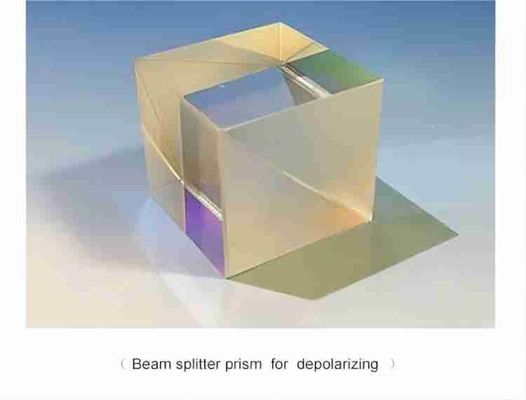

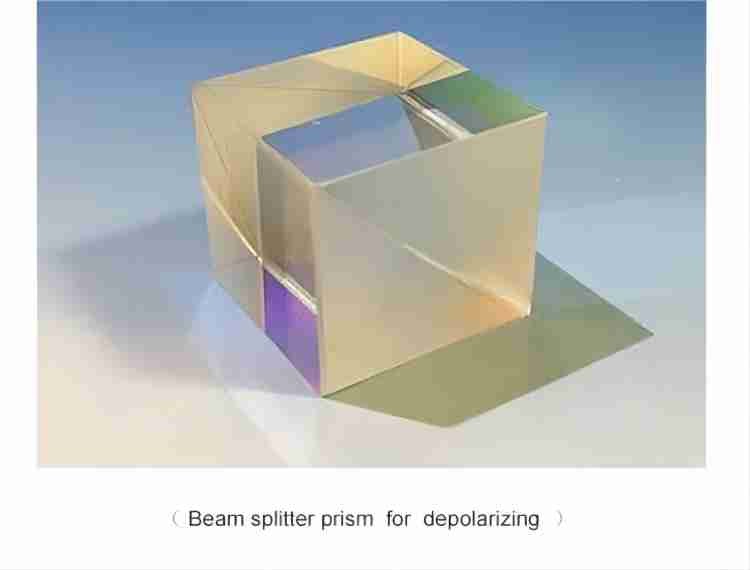

Large Receiving Angle Optical Beam Splitter Cubes Low Power Beam For Depolarizing

  • Large Receiving Angle Optical Beam Splitter Cubes Low Power Beam For Depolarizing
  • Large Receiving Angle Optical Beam Splitter Cubes Low Power Beam For Depolarizing
  • Large Receiving Angle Optical Beam Splitter Cubes Low Power Beam For Depolarizing
Place of Origin Beijing, China
Brand Name Kingki
Model Number Beam Splitter Cubes For Depolarizing
Minimum Order Quantity 5piece
Price $90/piece 1-10pieces; $60/piece 11-50pieces; $30/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 1000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Large Receiving Angle Low Power Beam Splitter Cubes Brand Name Kingki
Place Of Origin Beijing, China Substrate Optical Grade Glass
Surface Quality 60/40 Dimension Tolerance 0.01
Angle Tolerance 0.1 Advantge Small Beam Deflection Angle
Application Depolarizing
Highlight

Large Receiving Angle Optical Beam Splitter

,

Optical Beam Splitter Low Power

,

Depolarizing polarizing beam splitter
You can tick the products you need and communicate with us in the message board.
Product name Surface Quality Dimension Tolerance Application Angle Tolerance Quantity
Large Receiving Angle Low Power Beam Splitter Cubes 60/40 0.01 Depolarizing 0.1 Custom
Leave a Message
Product name Surface Quality Dimension Tolerance Application Angle Tolerance Quantity
Product Description

Large Receiving Angle Low Power Beam Splitter Cubes For Depolarizing



The polarizing beam splitter prism is an optical element which is formed by plating a multilayer filmstructure on the inclined surface of a right-angle prism, and then gluing to form a cubic structure.By utilizing the property that the transmittance of P polarized light is 1 and the transmittance of Spolarized light is less than 1 when light is incident at Brewster angle, after the light passes throughthe multilayer film structure for many times at Brewster angle, the obtained P polarized componentis completely transmitted, and most of the S polarized component is reflected (at least more than90%).

Polarization beam splitter prism has the characteristics of small stress, high extinction ratio, goodimaging quality and small beam deflection angle. The wavelength covers 420-1600nm. It can beused for polarization, polarization detection, light intensity adjustment and other occasions.

Product name Surface Quality Dimension Tolerance Application   Angle Tolerance Quantity
Large Receiving Angle Low Power Beam Splitter Cubes 60/40 0.01 Depolarizing   0.1 Custom
