400-700nm Optical Beam Splitter High Resolution Quantitative Spectroscope
| Model Number | Quantitative Spectroscope |
|---|---|
| Minimum Order Quantity | 5piece |
| Price | $90/piece 1-10pieces; $60/piece 11-50pieces; $30/piece >=51pieces |
| Packaging Details | Box, 100mm*80mm*60mm |
| Delivery Time | 7-28 work days |
| Payment Terms | T/T |
| Supply Ability | 1000piece/pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Beijing, China | Brand Name | Kingki |
|---|---|---|---|
| Product Name | 400-700nm Quantitative Spectroscope | Substrate | K9 |
| Thickness | 3±0.15mm | Parallelism | ≤1′ |
| Surface Type | λ/8@632.8nm | Clear Aperture | ＞90%Φ |
| Transmittance/Reflectivity | 50/50±5% | Polarization State Of Incident Light | Arbitrary Polarized Light |
| High Light | 700nm Optical Beam Splitter,400nm Optical Beam Splitter,High Resolution Quantitative Spectroscope |
||
You can tick the products you need and communicate with us in the message board.
| Product name | Substrate | Thickness | Parallelism | Surface Type | Clear Aperture | Transmittance/Reflectivity | Polarization state of incident light | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| 400-700nm Quantitative Spectroscope | K9 | 3±0.15mm | ≤1′ | λ/8@632.8nm | ＞90%Φ | 50/50±5% | Arbitrary polarized light | Custom |
Product Description

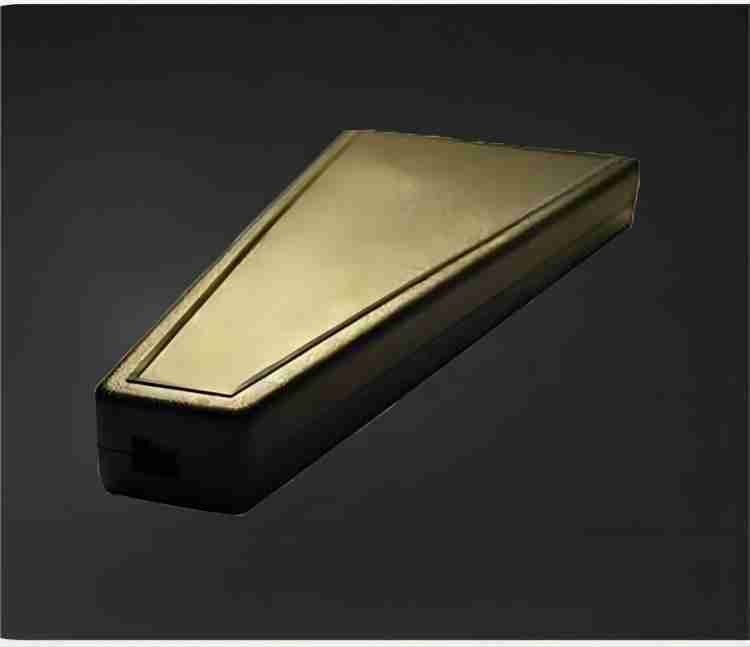

High Resolution 400-700nm Quantitative Spectroscope

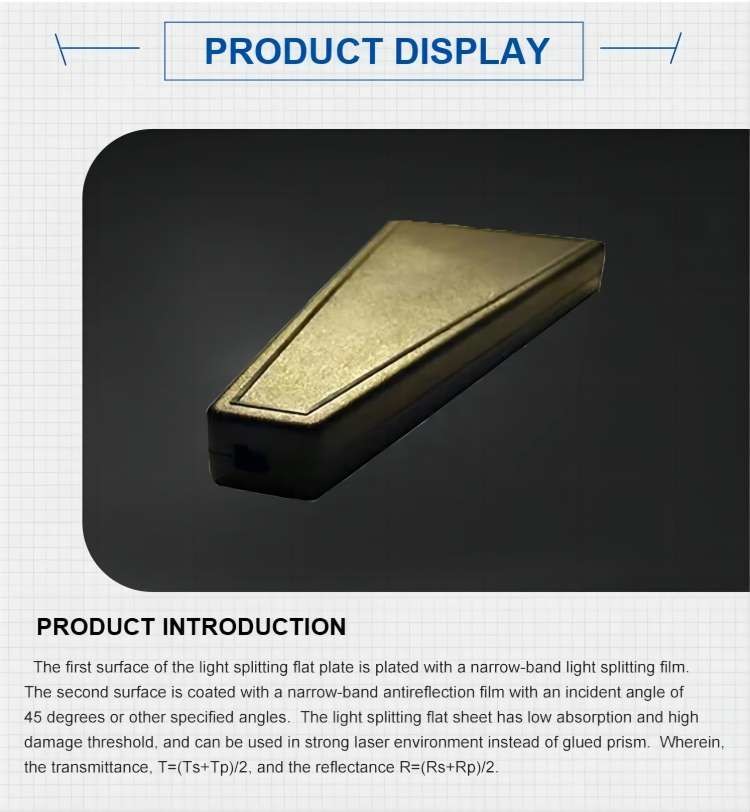

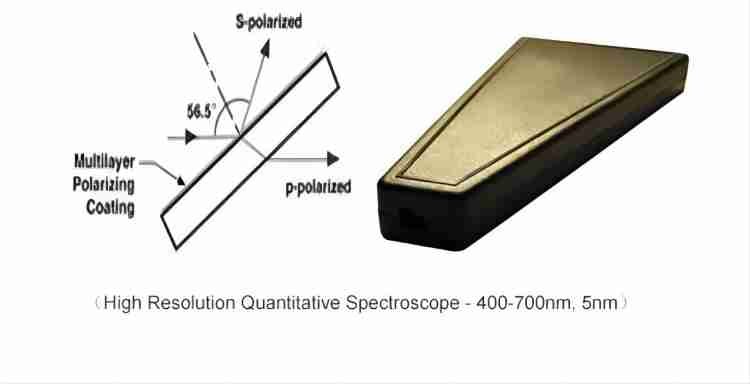

The first surface of the light spllting flat plate is plated with a narrow-band light splitting fim:The second surface is coated with a narrow-band antireflection film with an incident angle of45 degrees or other specified angles.The light splitting flat sheet has low absorption and highdamage threshold.and can be used in strong laser enwironment instead of glued prism.Wherein.the transmittance,T=(Ts+Tp)/2.and the reflectance R=(Rs+Rp)/2
| Product name | Substrate | Thickness | Parallelism | Clear Aperture | Transmittance/Reflectivity | Quantity |
| 400-700nm Quantitative Spectroscope | K9 | 3±0.15mm | ≤1′ | ＞90%Φ | 50/50±5% | Custom |
