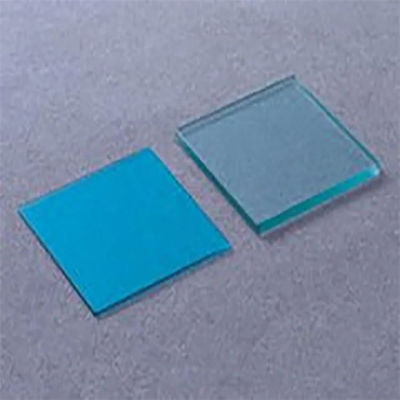

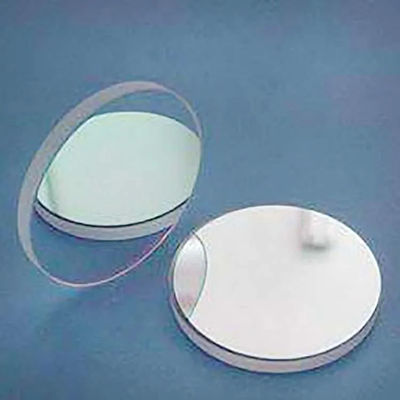

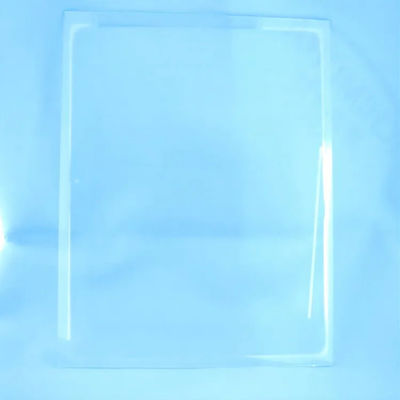

BBAR Broadband Anti Reflection Filter Infrared Pass Filter VIS UV
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Kingki |
| Model Number | Anti Reflection Filter |
| Minimum Order Quantity | 5piece |
| Price | $70/piece 1-10pieces; $65/piece 11-50pieces; $60/piece >=51pieces |
| Packaging Details | Box, 100mm*80mm*60mm |
| Delivery Time | 7-28 work days |
| Payment Terms | T/T |
| Supply Ability | 1000piece/pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | BBAR Broadband Anti Reflection VIS UV VIS UV VIS IR BBAR | Brand Name | Kingki |
|---|---|---|---|
| Place Of Origin | Beijing, China | Application | Anti Reflection |
| Substrate | Optical Glass | Size | Custom |
| Highlight | BBAR Broadband Anti Reflection Filter,Anti Reflection Filter UV,Infrared Pass Filter VIS |
||
Product Description
BBAR Broadband Anti Reflection VIS UV VIS UV VIS IR BBAR
Anti-reflective flm, also known as AR COATING, is mainly used to reduce or eliminate thereflected light from optical surfaces such as lenses, prisms, and mirrors, thereby increasing theamount of light transmitted by these components and reducing or eliminating stray light from thesystem.
| Antireflection film | ||||||
| name | sides | AOI | wave | Ravg | Tem | |
| e.g.2 | BBAR | 1 | 0° | 900-1085nm | ≤0.3% | ≤200° |
| AR | 2 | 15° | 420-680nm | ≤0.5% | ≤100° | |
| e.g.2 | shape | Size(mm) | materia | purpose | quantity | |
| float | D55X2 | quartz | Windows | 5000 | ||
| lens | D30x5 | BK7 | CCD | 3000 | ||
| Anti Reflection Film | ||||||
| Single wavelength high performance antireflection film |
1064 laser BBAR Coated Windows,T>99.8%,R≤2% | |||||
| 850-1330 Optical fiberAR coating,T>99.5%,R≤0.5% | ||||||
| Broadband antireflection film | Night vision instrument : 450-900nm,R≤1% | |||||
| Fire control system 1064nm : 450-1100 nm,R≤1.2% | ||||||
| UV 200-400nm,RS0.5% | ||||||
| vIs 400-700nm ,R<0.5% | ||||||
| Uv&vIS 300-700nm,R≤1% | ||||||
| VIS&IR : 450-650nm,R<0.5%,2000-2400nm,R≤1.5% | ||||||
