No Drift Biochemistry Analyzer Filters 620nm Narrow Band Filters

Model Number BP620
Minimum Order Quantity 5piece
Price $10/piece 1-10pieces; $9/piece 11-50pieces; $8/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 10000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Place Of Origin Beijing, China Brand Name Kingki
Product Name 620nm Narrow Bandpass Biochemical Light Filter Substrate Optical Glass
Center Wavelength 620nm FWHM 10nm±2nm
Transmittance ≥45% Cut-off Wavelength 200-1100nm
Blocking OD≥5 Size 10*6mm Or Custom
Application Biochemical Analysis Advantage No Drift
Customized OEM
High Light

Biochemistry Analyzer Filters 620nm


No Drift Biochemistry Analyzer Filters


620nm Narrow Band Filters

You can tick the products you need and communicate with us in the message board.
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
620nm 10nm±2nm ≥45% 200-1100nm 5 10*6mm or custom Custom
Leave a Message
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
Product Description

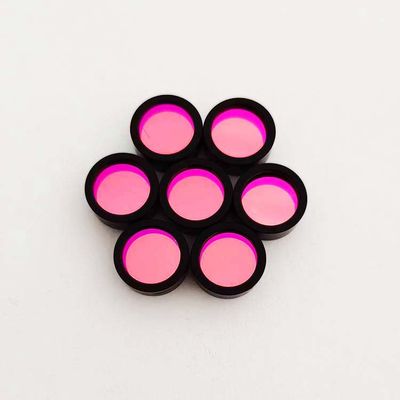

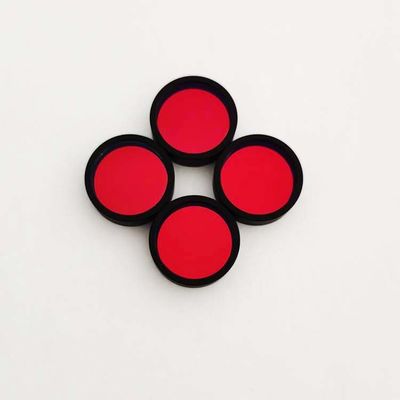

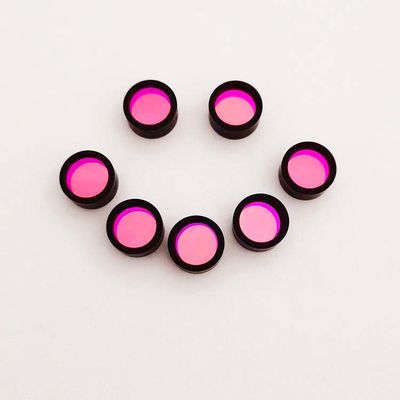

620nm narrow-band filter for biochemical analyzer


620nm narrow bandpass   biochemical light filter.It is mainly used fon enzymereader,SiM enzyme reader,fluorescence spectrophotometer,biochemical analyzer,automaticbiochemical analyzer,semt-automatic biochemical analyzer,taser scanning confocal microscopetechnalogy,UV detector,UV fuorescence anatyzer,laser confocal Raman spectroscopy systemand other application instruments

The high performance narrow band filter produced by kingkl optics has a spectral coverage of780nm~5000NM.The product has the characteristics of iong life,no drit,high transmittance,deep cut-off,high quality and low price.


Biochemical bandpass filter
Center wavelength(nm) FWHM(nm) Peak Transmission Average Blocking P/N
340卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-340
405卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-405
450卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-450
492卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-492
505卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-505
545卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-545
600卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-600
620卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-620
670卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-670
700卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-700
