Enzymereader 450nm Biochemistry Analyzer Filters Narrowband High Transmittance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPlace Of Origin | Beijing, China | Brand Name | Kingki |
---|---|---|---|
Product Name | 450nm Narrow Bandpass Biochemical Light Filter | Substrate | Optical Glass |
Center Wavelength | 450nm | FWHM | 10nm±2nm |
Transmittance | ≥45% | Cut-off Wavelength | 200-1100nm |
Blocking | OD≥5 | Size | 10*6mm Or Custom |
Application | Biochemical Analysis | Advantage | No Drift |
Customized | OEM | ||
High Light | Enzymereader Biochemistry Analyzer Filters,450nm Biochemistry Analyzer Filters,ultra narrowband filter High Transmittance |
Center wavelength | FWHM | Tamx | Cut-off | OD | Specification | Quantity | |
---|---|---|---|---|---|---|---|
450nm | 10nm±2nm | ≥45% | 200-1100nm | 5 | 10*6mm or custom | Custom |

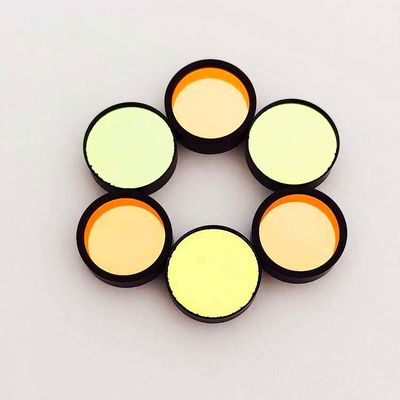

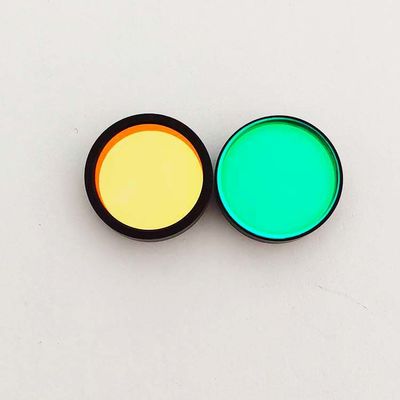

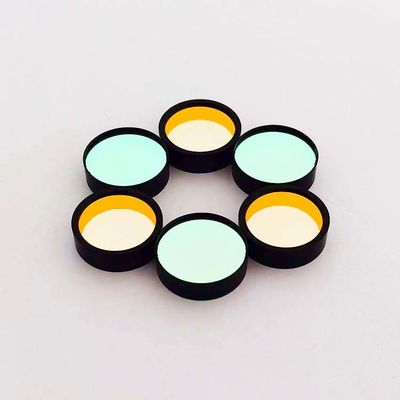

450nm narrow-band filter for biochemical analyzer
450nm narrow bandpass biochemical light filter.It is mainly used fon enzymereader,SiM enzyme reader,fluorescence spectrophotometer,biochemical analyzer,automaticbiochemical analyzer,semt-automatic biochemical analyzer,taser scanning confocal microscopetechnalogy,UV detector,UV fuorescence anatyzer,laser confocal Raman spectroscopy systemand other application instruments
The high performance narrow band filter produced by kingkl optics has a spectral coverage of780nm~5000NM.The product has the characteristics of iong life,no drit,high transmittance,deep cut-off,high quality and low price.
Biochemical bandpass filter | ||||
Center wavelength(nm) | FWHM(nm) | Peak Transmission | Average Blocking | P/N |
340卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-340 |
405卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-405 |
450卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-450 |
492卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-492 |
505卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-505 |
545卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-545 |
600卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-600 |
620卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-620 |
670卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-670 |
700卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-700 |
