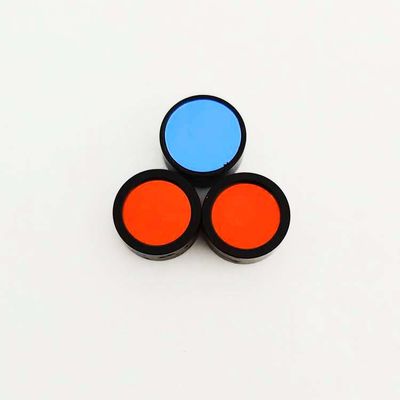

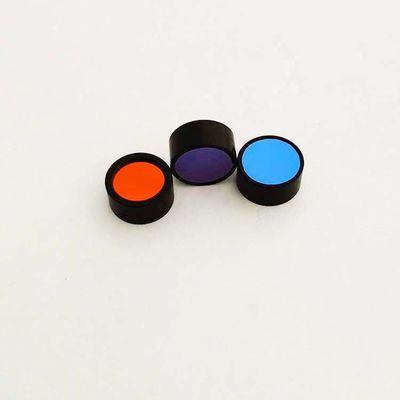

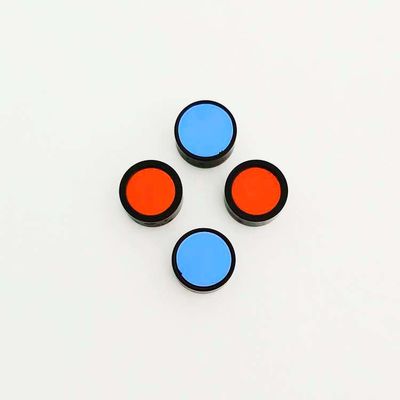

340nm Ultra Narrow Bandpass Filter OEM for biochemical analysis

Model Number BP340
Minimum Order Quantity 5piece
Price $10/piece 1-10pieces; $9/piece 11-50pieces; $8/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 10000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Place Of Origin Beijing, China Brand Name Kingki
Product Name 340nm Biochemical Light Filter Substrate Optical Glass
Center Wavelength 340nm FWHM 10nm±2nm
Transmittance ≥45% Blocking OD≥5@200-1100nm
Size 10*6mm With Metal Ring Or Custom Application Biochemical Detection
Advantage No Drift Customized OEM
High Light

340nm Ultra Narrow Bandpass Filter


Ultra Narrow Bandpass Filter OEM


Narrow Band Filter Biochemical Analysis

You can tick the products you need and communicate with us in the message board.
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
340nm 10nm±2nm ≥45% 200-1100nm 5 10*6mm or custom Custom
Leave a Message
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
Product Description

Biochemical filter 340nm narrow bandpass filter for biochemical analysis


Bp340 narrow bandpass filter, mainly used in UV transmissioninstrument.UV ananyzer,portable UV lamp.UV detector fluorophotometer.liquid chromatographyfixed wavelength UV absorption detector,thin layer ctromatography (TLC)observation lamp;UV curing,UV protection,UV analyzer,bioelectrophoresis image analysis system,UV-IR digitalobservation camera system,UV-IR digital cbservaflon camera system Nudleic acid proteindetector ultraviolet visible detector 254nm led.UV-B ultraviolet radiation meter,quartz glassUVlamp,liquid chromatograph,ultraviolet observation system,ultraviolet detector,nucleic acidprotein deteclor,ultraviolet transmission system,ultravialet photography system,fluorescencespectrophotomieter,public security criminal investigation equipment.gel imaging,automaticgel chromatography punfication instrument.Gel imaging analysis system.ultraviolet detector,chemiluminesaence imnging instrument,etc.


Biochemical bandpass filter
Center wavelength(nm) FWHM(nm) Peak Transmission Average Blocking P/N
340卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-340
405卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-405
450卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-450
492卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-492
505卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-505
545卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-545
600卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-600
620卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-620
670卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-670
700卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-700
