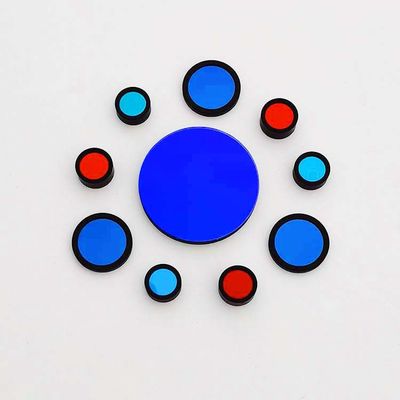

340nm-700nm Biochemistry Analyzer Filters Optical Bandpass Filter

Model Number Biology chemical analysis bandpass filter
Minimum Order Quantity 5piece
Price $10/piece 1-10pieces; $9/piece 11-50pieces; $8/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 10000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Place Of Origin Beijing, China Brand Name Kingki
Product Name BIology Chemical Analysis Bandpass Filtre Substrate Optical Glass
Center Wavelength 340nm-700nm FWHM 10nm-40nm
Transmittance ≥45% Blocking OD≥4@200-1200nm
Size 10*6mm Or Custom Application Biochemical Analysis
Advantage No Drift Customized OEM
High Light

700nm Biochemistry Analyzer Filters


340nm Biochemistry Analyzer Filters


Analyzer Optical Bandpass Filter

You can tick the products you need and communicate with us in the message board.
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
340-700nm 10-40nm ≥45% 200-1200nm >4 10*6mm or custom Custom
Leave a Message
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
Product Description

Biology chemical analysis bandpass filter


340nm-700nm bandpass flteris a band-pass ilter for biochemical instrument analysis.It is mainly used fon enzymereader,SiM enzyme reader,fluorescence spectrophotometer,biochemical analyzer,automaticbiochemical analyzer,semt-automatic biochemical analyzer,taser scanning confocal microscopetechnalogy,UV detector,UV fuorescence anatyzer,laser confocal Raman spectroscopy systemand other application instruments

The high performance narrow band filter produced by kingkl optics has a spectral coverage of780nm~5000NM.The product has the characteristics of iong life,no drit,high transmittance,deep cut-off,high quality and low price.


Biochemical bandpass filter
Center wavelength(nm) FWHM(nm) Peak Transmission Average Blocking P/N
340卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-340
405卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-405
450卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-450
492卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-492
505卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-505
545卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-545
600卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-600
620卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-620
670卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-670
700卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-700
