470nm Optical Narrow Bandpass Filter For Biochemical Analysis

Model Number BP470
Minimum Order Quantity 5piece
Price $70/piece 1-10pieces; $55/piece 11-50pieces; $35/piece >=51pieces
Packaging Details Box, 100mm*80mm*60mm
Delivery Time 7-28 work days
Payment Terms T/T
Supply Ability 10000piece/pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Beijing, China Brand Name Kingki
Product Name 470nm Biochemical Analysis Optical Filter Substrate Optical Glass
Center Wavelength 470nm FWHM 10nm
Transmittance ≥45% Cut-off Wavelength 200-1100nm
Blocking OD≥5 Size 12*2mm Or Custom
Application Biochemical Analysis Advantage No Drift
Customized OEM
High Light

470nm Optical Narrow Bandpass Filter

,

Optical Narrow Bandpass Filter Biochemical

,

narrow band pass filters Analysis

You can tick the products you need and communicate with us in the message board.
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
470nm 10nm ≥45% 200-1100nm 5 10*2mm or custom Custom
Leave a Message
Center wavelength FWHM Tamx Cut-off OD Specification Quantity
Product Description

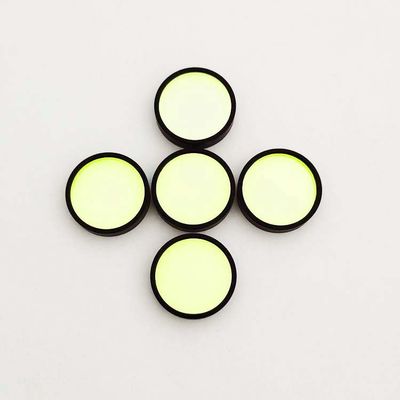

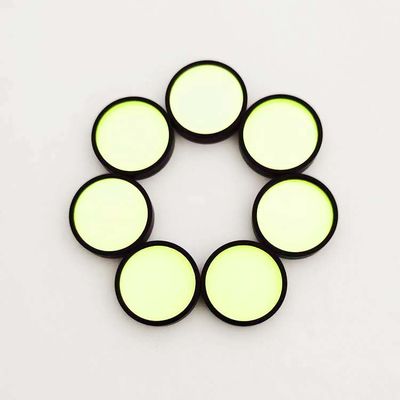

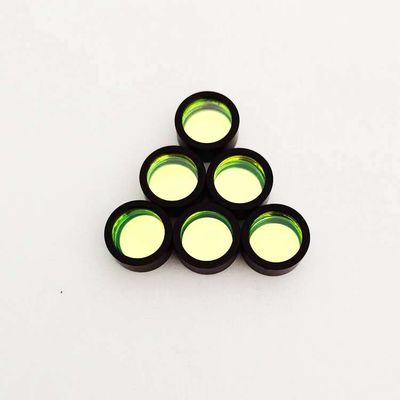

470nm narrow-band filter for biochemical analysis



470nm narrow bandpass   biochemical light filter.It is mainly used fon enzymereader,SiM enzyme reader,fluorescence spectrophotometer,biochemical analyzer,automaticbiochemical analyzer,semt-automatic biochemical analyzer,taser scanning confocal microscopetechnalogy,UV detector,UV fuorescence anatyzer,laser confocal Raman spectroscopy systemand other application instruments

The high performance narrow band filter produced by kingkl optics has a spectral coverage of780nm~5000NM.The product has the characteristics of iong life,no drit,high transmittance,deep cut-off,high quality and low price.



Biochemical bandpass filter
Center wavelength(nm) FWHM(nm) Peak Transmission Average Blocking P/N
340卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-340
405卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-405
450卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-450
492卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-492
505卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-505
545卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-545
600卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-600
620卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-620
670卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-670
700卤2 8~10nm 45%~60% OD5@200-1100nm KK-BF-700
