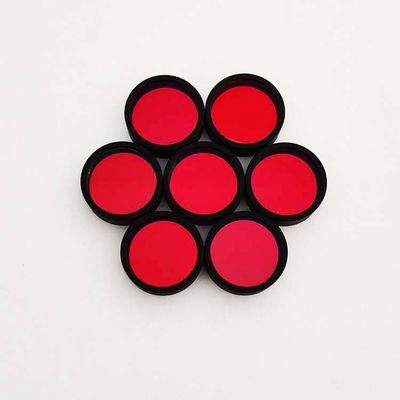

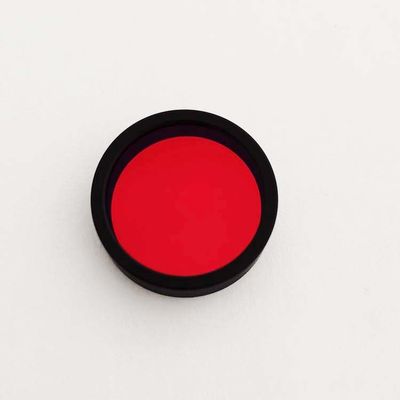

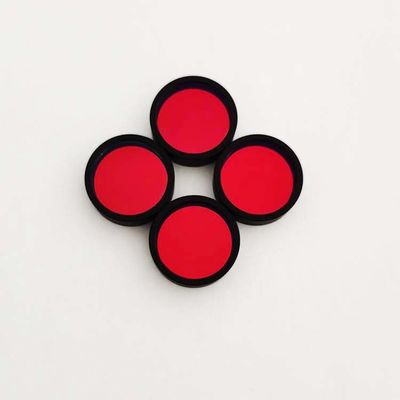

660nm Biochemistry Analyzer Filters Fiber Optic Bandpass Filter 10nm FWHM
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Kingki |
| Model Number | BP660 |
| Minimum Order Quantity | 5piece |
| Price | $10/piece 1-10pieces; $9/piece 11-50pieces; $8/piece >=51pieces |
| Packaging Details | Box, 100mm*80mm*60mm |
| Delivery Time | 7-28 work days |
| Payment Terms | T/T |
| Supply Ability | 10000piece/pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 660nm Biochemical Light Filter | Brand Name | Kingki |
|---|---|---|---|
| Place Of Origin | Beijing, China | Substrate | Clear Optical Glass |
| Center Wavelength | 660nm | FWHM | 10nm±2nm |
| Transmittance | ≥45% | Cut-off Wavelength | 200-1100nm |
| Blocking | OD≥5 | Size | 10*6mm Or Custom |
| Application | Biochemical Instrument Detection | Advantage | Long Life |
| Customized | OEM | ||
| High Light | 660nm Biochemistry Analyzer Filters,Biochemistry Analyzer Filters 10nm FWHM,Fiber Optic Bandpass Filter 10nm FWHM |
||
You can tick the products you need and communicate with us in the message board.
| Center wavelength | FWHM | Tamx | Cut-off | OD | Specification | Quantity | |
|---|---|---|---|---|---|---|---|
| 660nm | 10nm±2nm | ≥45% | 200-1100nm | 5 | 10*6mm or custom | Custom |
Product Description
Factory Customized professional Band Pass Filter For Biochemical Instrument Detection 660nm Biochemical Light Filters
Bp660 flteris a band-pass ilter for biochemical instrument detection.It is mainly used fon enzymereader,SiM enzyme reader,fluorescence spectrophotometer,biochemical analyzer,automaticbiochemical analyzer,semt-automatic biochemical analyzer,taser scanning confocal microscopetechnalogy,UV detector,UV fuorescence anatyzer,laser confocal Raman spectroscopy systemand other application instruments
The high performance narrow band filter produced by kingkl optics has a spectral coverage of780nm~5000NM.The product has the characteristics of iong life,no drit,high transmittance,deep cut-off,high quality and low price.
| Biochemical bandpass filter | ||||
| Center wavelength(nm) | FWHM(nm) | Peak Transmission | Average Blocking | P/N |
| 340卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-340 |
| 405卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-405 |
| 450卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-450 |
| 492卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-492 |
| 505卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-505 |
| 545卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-545 |
| 600卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-600 |
| 620卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-620 |
| 670卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-670 |
| 700卤2 | 8~10nm | 45%~60% | OD5@200-1100nm | KK-BF-700 |
